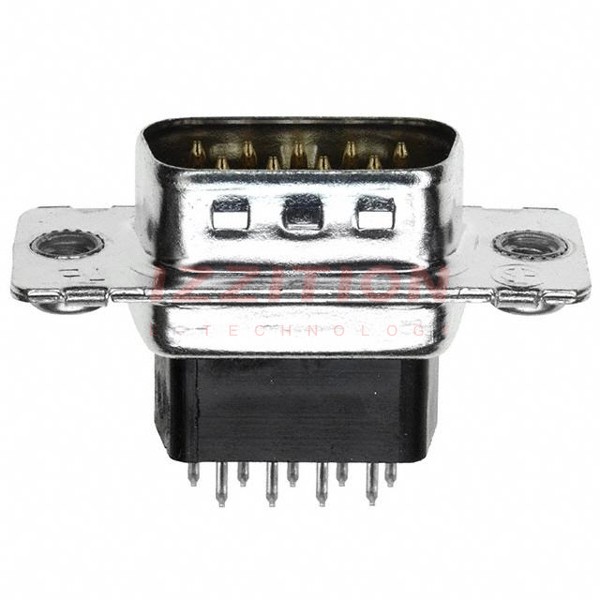

| Part Number | 5749014-1 | 5749019-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete |
| Connector Style | D-Sub | D-Sub, High Density |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Number of Positions | 9 | 78 |
| Number of Rows | 2 | 4 |
| Mounting Type | Through Hole | Through Hole |
| Shell Size, Connector Layout | 1 (DE, E) | 5 (DD, D) High Density |
| Contact Type | Signal | Signal |
| Flange Feature | Board Side (4-40) | Housing/Shell (4-40) |
| Termination | Solder | Solder |
| Primary Material | - | - |
| Shell Material, Finish | Steel, Tin Plated | Steel, Nickel Plated |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | - | 30.0µin (0.76µm) |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | - |
| Current Rating (Amps) | 6A | 1.5A |
| Backset Spacing | - | - |
| Features | Grounding Indents | Grounding Indents |
