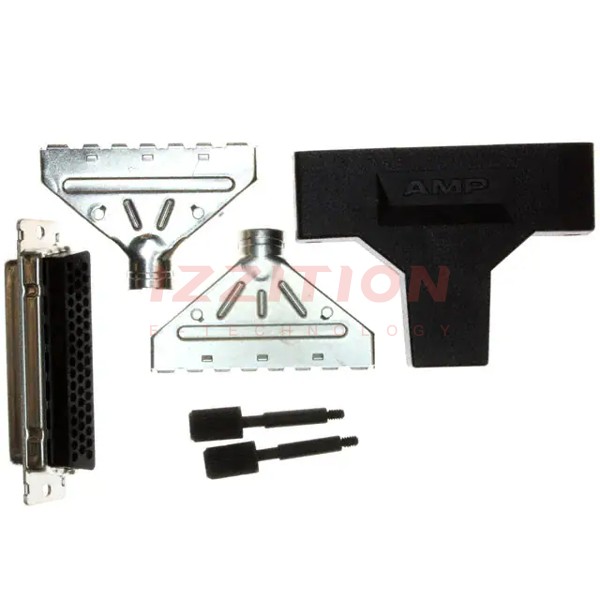

| Part Number | 5747959-1 | 747959-1 | 5747958-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete | Active |
| Connector Style | D-Sub | D-Sub | D-Sub |
| Connector Type | Receptacle for Female Contacts | Receptacle for Female Contacts | Plug for Male Contacts |
| Number of Positions | 50 | 50 | 37 |
| Number of Rows | 3 | 3 | 2 |
| Shell Size, Connector Layout | 5 (DD, D) | 5 (DD, D) | 4 (DC, C) |
| Contact Type | Signal | Signal | Signal |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Flange Feature | Cable Side (4-40) | Cable Side (4-40) | Cable Side (4-40) |
| Features | Backshell, Shielded | Backshell, Shielded | Backshell, Grounding Indents, Shielded |
| Primary Material | - | - | - |
| Shell Material, Finish | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated |
| Shell Finish Thickness | 200µin (5.08µm) | - | 200µin (5.08µm) |
| Ingress Protection | - | - | - |
