TE Connectivity AMP Connectors 5747846-6

Manufacturer No:
5747846-6
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
5747846-6 Datasheet
ECAD Model:
-
Description:

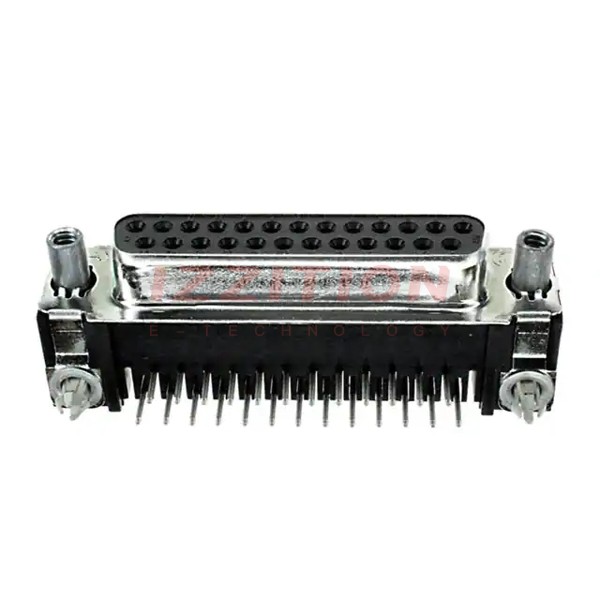

CONN D-SUB RCPT 25POS R/A SLDR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Style:D-Sub
Connector Type:Receptacle, Female Sockets
Number of Positions:25
Number of Rows:2
Mounting Type:Through Hole, Right Angle
Shell Size, Connector Layout:3 (DB, B)
Contact Type:Signal
Flange Feature:Mating Side, Female Screwlock (4-40)
Termination:Solder
Primary Material:-
Shell Material, Finish:Steel, Tin Plated
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Current Rating (Amps):6A
Backset Spacing:0.318" (8.08mm)
Features:Board Lock, Ground Strap
0 Remaining View Similar

In Stock

$7.18
31

Please send RFQ , we will respond immediately.

Similar Products

Part Number 5747846-6 5747847-6   5747836-6   5747840-6   5747841-6   5747842-6   5747843-6   5747844-6   5747845-6   5747846-2   5747846-3   5747846-4   5747846-5
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active Active Active Active Active Active Active Active Active Active
Connector Style D-Sub D-Sub D-Sub D-Sub D-Sub D-Sub D-Sub D-Sub D-Sub D-Sub D-Sub D-Sub D-Sub
Connector Type Receptacle, Female Sockets Receptacle, Female Sockets Receptacle, Female Sockets Plug, Male Pins Plug, Male Pins Plug, Male Pins Plug, Male Pins Receptacle, Female Sockets Receptacle, Female Sockets Receptacle, Female Sockets Receptacle, Female Sockets Receptacle, Female Sockets Receptacle, Female Sockets
Number of Positions 25 37 9 9 15 25 37 9 15 25 25 25 25
Number of Rows 2 2 2 2 2 2 2 2 2 2 2 2 2
Mounting Type Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle
Shell Size, Connector Layout 3 (DB, B) 4 (DC, C) 1 (DE, E) 1 (DE, E) 2 (DA, A) 3 (DB, B) 4 (DC, C) 1 (DE, E) 2 (DA, A) 3 (DB, B) 3 (DB, B) 3 (DB, B) 3 (DB, B)
Contact Type Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal
Flange Feature Mating Side, Female Screwlock (4-40) Mating Side, Female Screwlock (4-40) Mating Side, Female Screwlock (4-40) Mating Side, Female Screwlock (4-40) Mating Side, Female Screwlock (4-40) Mating Side, Female Screwlock (4-40) Mating Side, Female Screwlock (4-40) Mating Side, Female Screwlock (4-40) Mating Side, Female Screwlock (4-40) Housing/Shell (Unthreaded) Housing/Shell (4-40) Housing/Shell (4-40) Mating Side, Female Screwlock (4-40)
Termination Solder Solder Solder Solder Solder Solder Solder Solder Solder Solder Solder Solder Solder
Primary Material - - - - - - - - - - - - -
Shell Material, Finish Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated
Contact Finish Gold Gold Gold Gold Gold Gold Gold Gold Gold Gold Gold Gold Gold
Contact Finish Thickness 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) - - - - 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) Flash 30.0µin (0.76µm) Flash
Ingress Protection - - - - - - - - - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Current Rating (Amps) 6A 6A 6A 6A 6A 6A 6A 6A 6A 6A 6A 6A 6A
Backset Spacing 0.318" (8.08mm) 0.318" (8.08mm) 0.590" (14.99mm) 0.318" (8.08mm) 0.318" (8.08mm) 0.318" (8.08mm) 0.318" (8.08mm) 0.318" (8.08mm) 0.318" (8.08mm) 0.318" (8.08mm) 0.318" (8.08mm) 0.318" (8.08mm) 0.318" (8.08mm)
Features Board Lock, Ground Strap Board Lock, Ground Strap Board Lock, Ground Strap Board Lock, Ground Strap, Grounding Indents Board Lock, Ground Strap, Grounding Indents Board Lock, Ground Strap, Grounding Indents Board Lock, Grounding Indents Board Lock, Ground Strap Board Lock, Ground Strap Board Lock, Ground Strap Board Lock, Ground Strap Board Lock, Ground Strap Board Lock, Ground Strap
