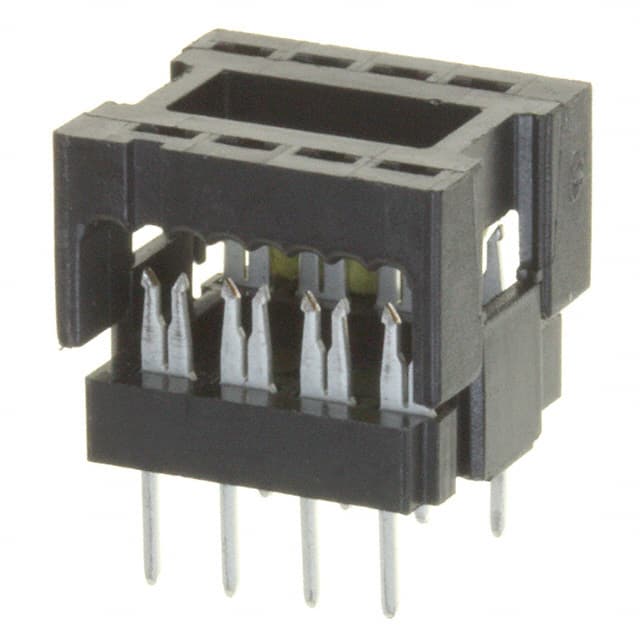

| Part Number | 5746613-1 | 5746613-3 | 5746613-2 | 746613-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Type | Ribbon Cable, DIP Header | Ribbon Cable, DIP Header | Ribbon Cable, DIP Header | Ribbon Cable, DIP Header |
| Number of Positions | 8 | 16 | 14 | 8 |
| Cable Pitch | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) |
| Board-Side Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 2 | 2 | 2 | 2 |
| Row Spacing | 0.300" (7.62mm) | 0.300" (7.62mm) | 0.300" (7.62mm) | 0.300" (7.62mm) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Cable Termination | IDC | IDC | IDC | IDC |
| Wire Gauge | 28 AWG, Stranded; 26-30 AWG, Solid | 28 AWG, Stranded; 26-30 AWG, Solid | 28 AWG, Stranded; 26-30 AWG, Solid | 28 AWG, Stranded; 26-30 AWG, Solid |
| Features | Feed Through | Feed Through | Feed Through | Feed Through |
| Contact Finish | Gold | Gold | Gold | Tin-Lead |
| Contact Finish Thickness | 5.00µin (0.127µm) | 5.00µin (0.127µm) | 5.00µin (0.127µm) | 100.0µin (2.54µm) |
| Color | Black | Black | Black | Black |
