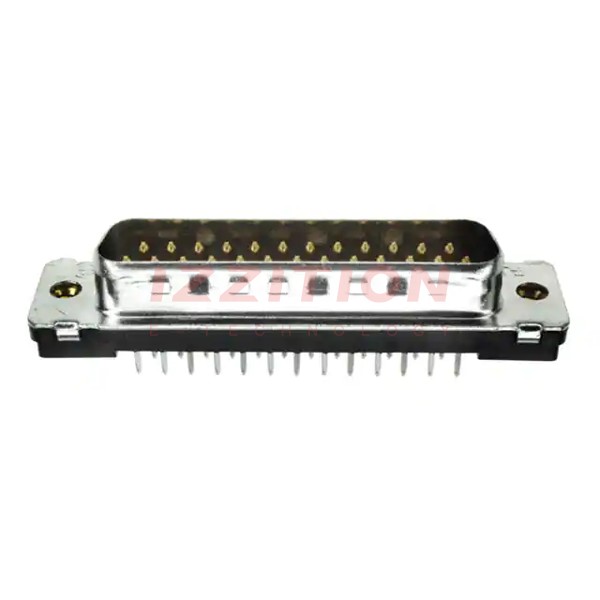

| Part Number | 5745968-8 | 5745967-8 | 5745968-2 | 5745968-4 | 5745968-7 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Connector Style | D-Sub | D-Sub | D-Sub | D-Sub | D-Sub |
| Connector Type | Plug, Male Pins | Receptacle, Female Sockets | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins |
| Number of Positions | 25 | 25 | 25 | 25 | 25 |
| Number of Rows | 2 | 2 | 2 | 2 | 2 |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Shell Size, Connector Layout | 3 (DB, B) | 3 (DB, B) | 3 (DB, B) | 3 (DB, B) | 3 (DB, B) |
| Contact Type | Signal | Signal | Signal | Signal | Signal |
| Flange Feature | Housing/Shell (4-40) | Housing/Shell (4-40) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Housing/Shell (4-40) |
| Termination | Solder | Solder | Solder | Solder | Solder |
| Primary Material | - | - | - | - | - |
| Shell Material, Finish | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated |
| Contact Finish | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | Flash | Flash | Flash |
| Ingress Protection | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Current Rating (Amps) | 6A | 6A | 6A | 6A | 6A |
| Backset Spacing | - | - | - | - | - |
| Features | Grounding Indents | - | Grounding Indents | Grounding Indents | Grounding Indents |
