Please send RFQ , we will respond immediately.

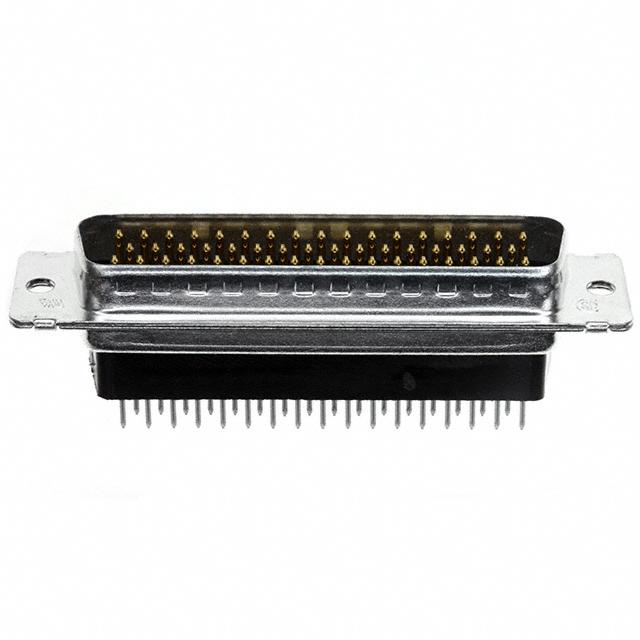

| Part Number | 5745414-7 | 5745410-7 | 5745412-7 | 5745414-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Style | D-Sub | D-Sub | D-Sub | D-Sub |
| Connector Type | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins |
| Number of Positions | 50 | 9 | 25 | 50 |
| Number of Rows | 3 | 2 | 2 | 3 |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Shell Size, Connector Layout | 5 (DD, D) | 1 (DE, E) | 3 (DB, B) | 5 (DD, D) |
| Contact Type | Signal | Signal | Signal | Signal |
| Flange Feature | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) |
| Termination | Solder | Solder | Solder | Solder |
| Primary Material | - | - | - | - |
| Shell Material, Finish | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated |
| Contact Finish | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | - | - | - | - |
| Ingress Protection | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Current Rating (Amps) | 6A | 6A | 6A | 6A |
| Backset Spacing | - | - | - | - |
| Features | Grounding Indents | Grounding Indents | Grounding Indents | Grounding Indents |
