Please send RFQ , we will respond immediately.

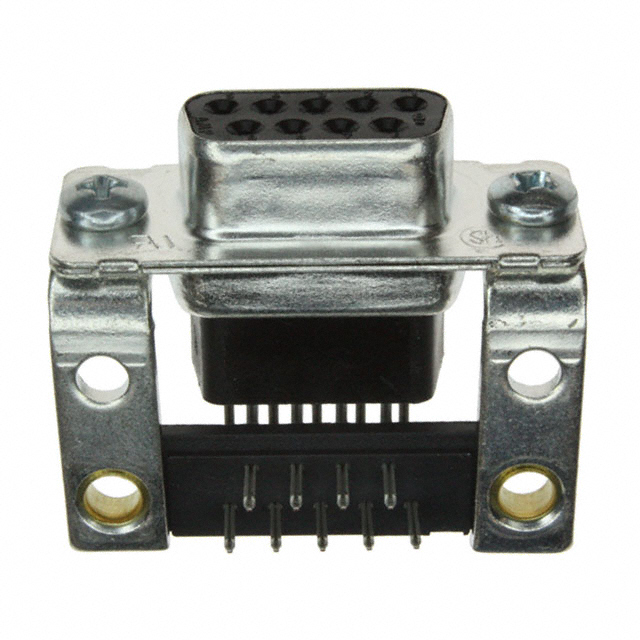

| Part Number | 5745112-2 | 5745182-2 | 5745114-2 | 5745115-2 | 5745113-2 | 5745132-2 | 5745116-2 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Connector Style | D-Sub | D-Sub | D-Sub | D-Sub | D-Sub | D-Sub | D-Sub |
| Connector Type | Receptacle, Female Sockets | Plug, Male Pins | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 9 | 9 | 25 | 37 | 15 | 25 | 50 |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 | 3 |
| Mounting Type | Through Hole, Right Angle | Through Hole | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Shell Size, Connector Layout | 1 (DE, E) | 1 (DE, E) | 3 (DB, B) | 4 (DC, C) | 2 (DA, A) | 3 (DB, B) | 5 (DD, D) |
| Contact Type | Signal | Signal | Signal | Signal | Signal | Signal | Signal |
| Flange Feature | Mating Side, Standard Screws (4-40) | Housing/Shell (Unthreaded) | Mating Side, Standard Screws (4-40) | Mating Side, Standard Screws (4-40) | Mating Side, Standard Screws (4-40) | Housing/Shell (Unthreaded) | Mating Side, Standard Screws (4-40) |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Primary Material | - | - | - | - | - | - | - |
| Shell Material, Finish | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | - | Steel, Tin Plated |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | - | Flash | - | - | - | 30.0µin (0.76µm) | - |
| Ingress Protection | - | - | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Current Rating (Amps) | 6A | 6A | 6A | 6A | 6A | 6A | 6A |
| Backset Spacing | 0.545" (13.84mm) | - | 0.545" (13.84mm) | 0.545" (13.84mm) | 0.545" (13.84mm) | 0.318" (8.08mm) | 0.545" (13.84mm) |
| Features | Mounting Brackets | - | Mounting Brackets | Mounting Brackets | Mounting Brackets | - | Mounting Brackets |
