5646958-2
  • Share:

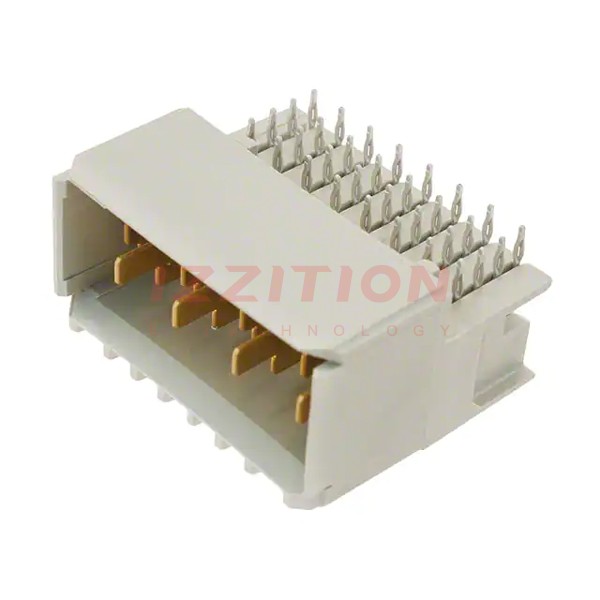

TE Connectivity AMP Connectors 5646958-2

Manufacturer No:
5646958-2
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
5646958-2 Datasheet
ECAD Model:
-
Description:
CONN HEADER BLADE PWR 8P EDGE MT
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Usage:Backplane
Connector Type:Header, Male Blades
Connector Style:Blade Power
Number of Positions:8
Number of Positions Loaded:All
Pitch:-
Number of Rows:1
Number of Columns:-
Mounting Type:Board Edge, Through Hole, Right Angle
Termination:Press-Fit
Contact Layout, Typical:8 Power
Features:Board Guide
Contact Finish:Gold or Gold-Palladium
Contact Finish Thickness:-
Color:Gray
0 Remaining View Similar

In Stock

$12.35
80

Please send RFQ , we will respond immediately.

Similar Products

Part Number 5646958-2 5646954-2   5646955-2   5646956-2   5646958-1
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active Active
Connector Usage Backplane Backplane Backplane Backplane Backplane
Connector Type Header, Male Blades Header, Male Blades Header, Male Blades Header, Male Blades Header, Male Blades
Connector Style Blade Power Blade Power Blade Power Blade Power Blade Power
Number of Positions 8 4 5 6 8
Number of Positions Loaded All All All All All
Pitch - - - - -
Number of Rows 1 1 1 1 1
Number of Columns - - - - -
Mounting Type Board Edge, Through Hole, Right Angle Board Edge, Through Hole, Right Angle Board Edge, Through Hole, Right Angle Board Edge, Through Hole, Right Angle Board Edge, Through Hole, Right Angle
Termination Press-Fit Press-Fit Press-Fit Press-Fit Press-Fit
Contact Layout, Typical 8 Power 4 Power 5 Power 6 Power 8 Power
Features Board Guide Board Guide Board Guide Board Guide Board Guide
Contact Finish Gold or Gold-Palladium Gold or Gold-Palladium Gold or Gold-Palladium Gold or Gold-Palladium Gold or Gold-Palladium
Contact Finish Thickness - - - - -
Color Gray Gray Gray Gray Gray
