Please send RFQ , we will respond immediately.

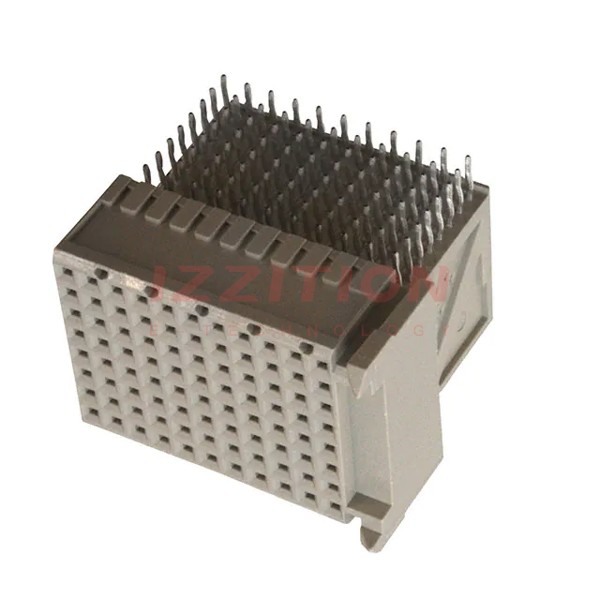

| Part Number | 5646446-1 | 5646486-1 | 646446-1 | 5646346-1 | 5646442-1 | 5646445-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Header, Male Pins | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Connector Style | F 11 | D 22 | F 11 | D 22 | D 22 | E 25 |
| Number of Positions | 88 | 176 | 88 | 176 | 176 | 200 |
| Number of Positions Loaded | All | All | All | All | All | All |
| Pitch | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Rows | 8 | 8 | 8 | 8 | 8 | 8 |
| Mounting Type | Board Edge, Through Hole, Right Angle | Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Through Hole | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Connector Usage | - | - | - | Backplane | - | - |
| Contact Finish | Gold | Gold | Gold | - | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | - | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
