Please send RFQ , we will respond immediately.

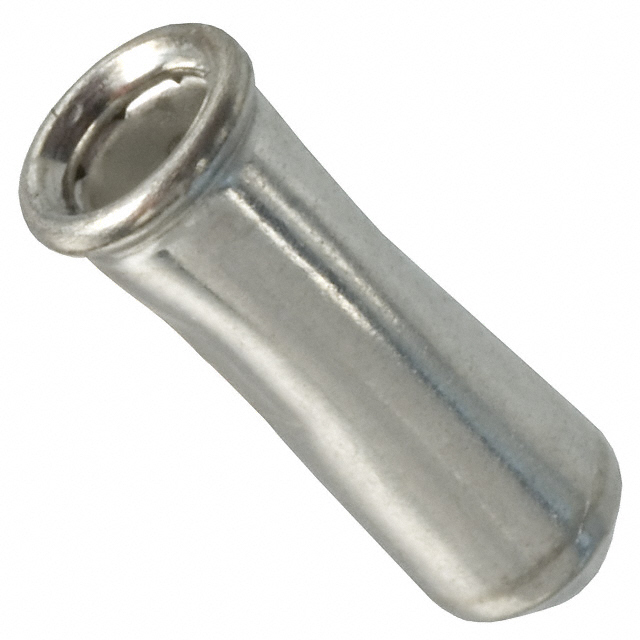

| Part Number | 5645979-1 | 645979-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete |
| Tail Type | No Tail | No Tail |
| Termination | Solder | Solder |
| Length - Overall | 0.308" (7.82mm) | 0.308" (7.82mm) |
| Accepts Pin Diameter | 0.042" ~ 0.049" (1.07mm ~ 1.24mm) | 0.042" ~ 0.049" (1.07mm ~ 1.24mm) |
| Accepts Square Pin Size | - | - |
| Pin Hole Diameter | - | - |
| Mounting Hole Diameter | 0.102" (2.59mm) | 0.102" (2.59mm) |
| Flange Diameter | 0.118" (3.00mm) | 0.118" (3.00mm) |
| Tail Diameter | - | - |
| Socket Depth | 0.145" ~ 0.275" (3.68mm ~ 6.99mm) | 0.145" ~ 0.275" (3.68mm ~ 6.99mm) |
| Contact Material | Beryllium Copper | Beryllium Copper |
| Contact Finish | Tin | Tin |
| Contact Finish Thickness | 100.0µin (2.54µm) | 100.0µin (2.54µm) |
