Please send RFQ , we will respond immediately.

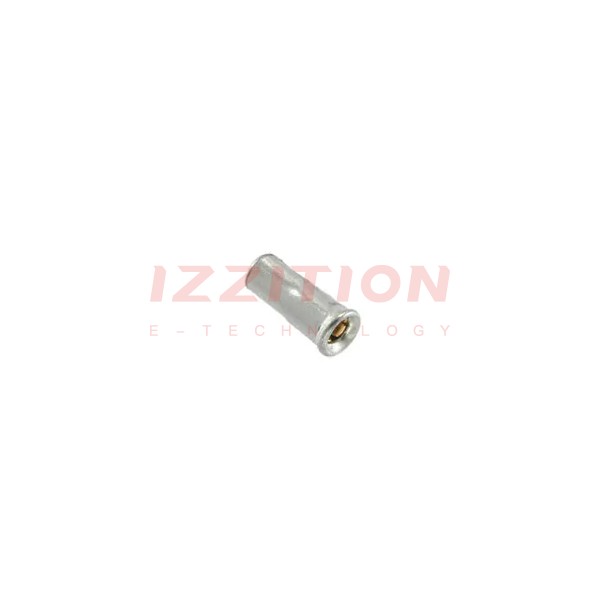

| Part Number | 5645508-1 | 5645518-1 | 5645500-1 | 5645502-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Obsolete | Obsolete |
| Tail Type | No Tail | No Tail | No Tail | No Tail |
| Termination | Solder | Solder | Solder | Solder |
| Length - Overall | 0.206" (5.23mm) | 0.206" (5.23mm) | 0.260" (6.60mm) | 0.260" (6.60mm) |
| Accepts Pin Diameter | 0.040" (1.02mm) | 0.038" ~ 0.042" (0.97mm ~ 1.07mm) | 0.037" ~ 0.041" (0.94mm ~ 1.04mm) | 0.037" ~ 0.041" (0.94mm ~ 1.04mm) |
| Accepts Square Pin Size | - | - | - | - |
| Pin Hole Diameter | - | - | - | - |
| Mounting Hole Diameter | 0.075" ~ 0.078" (1.91mm ~ 1.98mm) | 0.075" (1.91mm) | 0.069" ~ 0.075" (1.75mm ~ 1.91mm) | 0.069" (1.75mm) |
| Flange Diameter | 0.093" (2.36mm) | 0.093" (2.36mm) | 0.089" (2.26mm) | 0.088" (2.24mm) |
| Tail Diameter | - | - | - | - |
| Socket Depth | - | - | 0.100" ~ 0.210" (2.54mm ~ 5.33mm) | 0.210" (5.33mm) |
| Contact Material | Beryllium Copper | Beryllium Copper | Beryllium Copper | Beryllium Copper |
| Contact Finish | Gold | Tin | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 100.0µin (2.54µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
