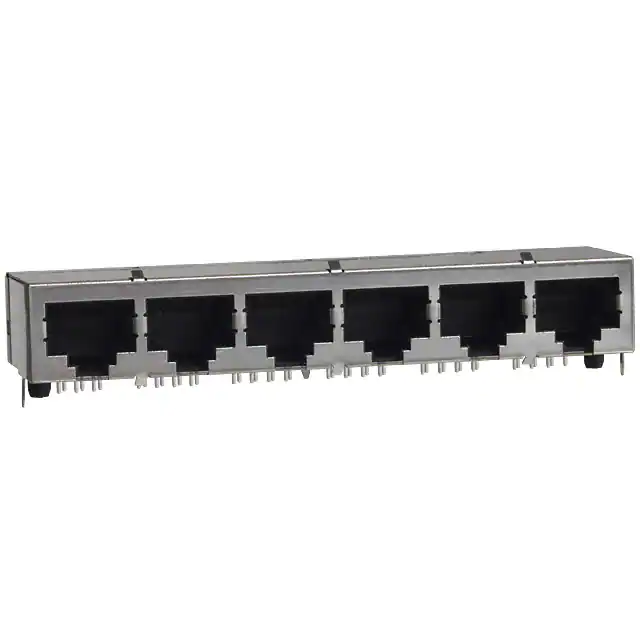

| Part Number | 558504-1 | 558524-1 | 558505-1 | 5558504-1 | 558501-1 | 558503-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Active | Obsolete | Obsolete |
| Connector Type | Jack | Jack | Jack | Jack | Jack | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | 8p8c (RJ45, Ethernet) | 8p8c (RJ45, Ethernet) | 8p8c (RJ45, Ethernet) | 8p8c (RJ45, Ethernet) | 8p8c (RJ45, Ethernet) |
| Number of Ports | 6 | 4 | 8 | 6 | 6 | 4 |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Orientation | 90° Angle (Right) | 90° Angle (Right) | 90° Angle (Right) | 90° Angle (Right) | 90° Angle (Right) | 90° Angle (Right) |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder |
| Shielding | Shielded | Shielded, EMI Finger | Shielded | Shielded | Unshielded | Shielded |
| Ratings | Cat5 | Cat5 | Cat5 | Cat5 | Cat5 | Cat5 |
| Features | Board Guide | Board Guide | Board Guide | Board Guide | Board Guide | Board Guide |
| LED Color | Does Not Contain LED | Does Not Contain LED | Does Not Contain LED | Does Not Contain LED | Does Not Contain LED | Does Not Contain LED |
| Ingress Protection | - | - | - | - | - | - |
| Tab Direction | Down | Down | Down | Down | Down | Down |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold |
