Please send RFQ , we will respond immediately.

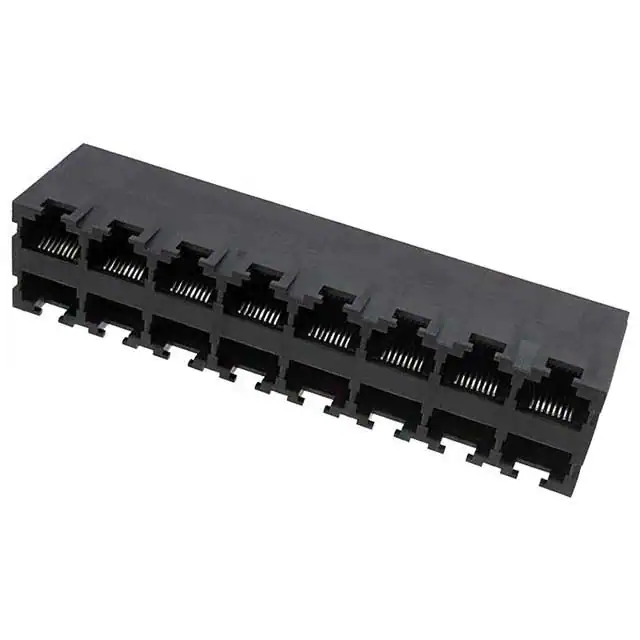

| Part Number | 5569254-1 | 5569264-1 | 5569284-1 | 5569257-1 | 5569256-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Connector Type | Jack | Jack | Jack | Jack | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | 8p8c (RJ45, Ethernet) | 8p8c (RJ45, Ethernet) | 8p8c (RJ45, Ethernet) | 8p8c (RJ45, Ethernet) |
| Number of Ports | 16 | 16 | 1 | 8 | 6 |
| Number of Rows | 2 | 2 | 1 | 2 | 2 |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Orientation | 90° Angle (Right) | 90° Angle (Right) | Vertical | 90° Angle (Right) | 90° Angle (Right) |
| Termination | Solder | Solder | Solder | Solder | Solder |
| Shielding | Unshielded | Shielded, EMI Finger | Unshielded | Shielded | Shielded |
| Ratings | Cat5 | Cat5 | Cat3 | Cat5 | Cat5 |
| Features | Board Guide | Board Guide | Board Lock | Board Guide | Board Guide |
| LED Color | Does Not Contain LED | Does Not Contain LED | Does Not Contain LED | Does Not Contain LED | Does Not Contain LED |
| Ingress Protection | - | - | - | - | - |
| Tab Direction | Up and Down | Up and Down | User Selectable | Up and Down | Up and Down |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Gold | Gold | Gold | Gold | Gold |
