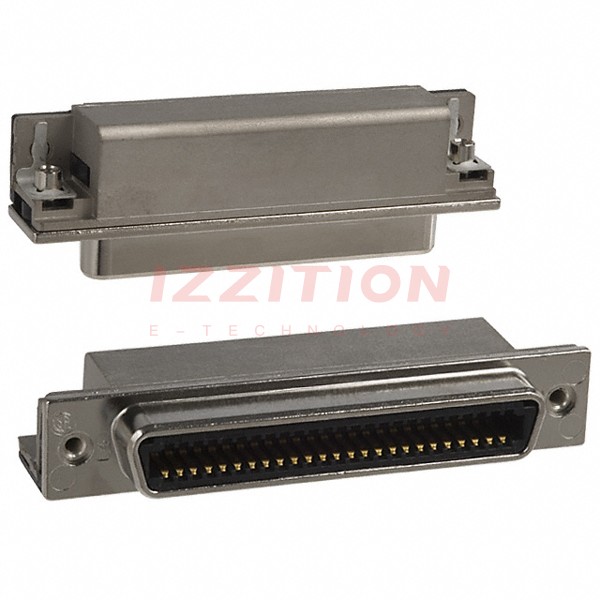

| Part Number | 5557932-2 | 557932-2 | 5557932-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Last Time Buy | Obsolete | Last Time Buy |
| Connector Style | Outer Shroud Contacts | Outer Shroud Contacts | Outer Shroud Contacts |
| Connector Type | Receptacle | Receptacle | Receptacle |
| Number of Positions | 50 | 50 | 50 |
| Number of Rows | 2 | 2 | 2 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle |
| Termination | Solder | Solder | Solder |
| Flange Feature | Housing/Shell (4-40) | Housing/Shell (4-40) | Board Side (4-40) |
| Type | - | - | SCSI |
| Features | Board Lock, Shielded | Board Lock, Shielded | Bail Lock, Board Lock, Shielded |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
