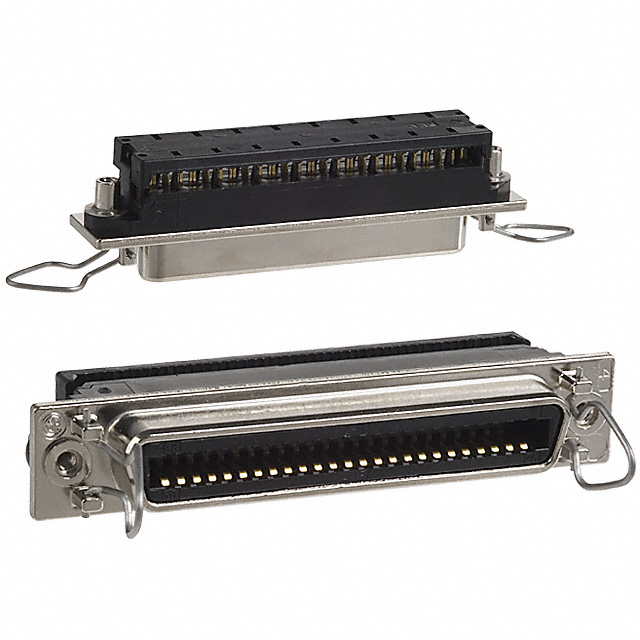

| Part Number | 554347-2 | 554947-2 | 5554347-2 | 554346-2 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Style | Outer Shroud Contacts | Center Strip Contacts | Outer Shroud Contacts | Outer Shroud Contacts |
| Connector Type | Receptacle | Plug | Receptacle | Receptacle |
| Number of Positions | 50 | 24 | 50 | 36 |
| Number of Rows | 2 | 2 | 2 | 2 |
| Mounting Type | Panel Mount | Free Hanging (In-Line) | Panel Mount | Panel Mount |
| Termination | IDC | IDC | IDC | IDC |
| Flange Feature | Housing/Shell (4-40) | - | Housing/Shell (4-40) | Board Side (4-40) |
| Type | - | - | - | - |
| Features | Bail Lock, Shielded | Bail Lock, Shielded | Bail Lock, Shielded | Bail Lock, Shielded |
| Contact Finish | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | Flash | - |
