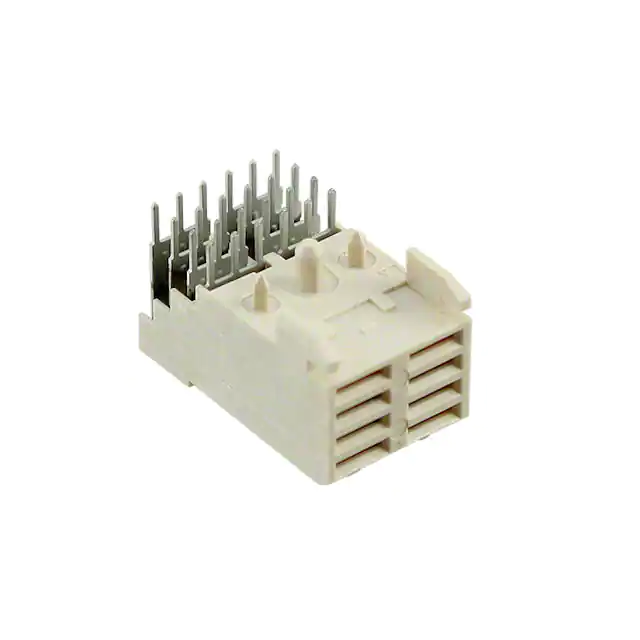

| Part Number | 5536607-1 | 536607-1 | 5536507-1 | 5536600-1 | 5536603-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete | Active | Active | Active |
| Connector Usage | - | - | - | - | - |
| Connector Type | Receptacle, Female Blade Sockets | Receptacle, Female Blade Sockets | Receptacle, Female Sockets | Header, Male Blades | Header, Male Blades |
| Connector Style | Futurebus | Futurebus | Futurebus | Futurebus | Futurebus |
| Number of Positions | 8 | 8 | 24 | 8 | 8 |
| Number of Positions Loaded | All | All | All | All | All |
| Pitch | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.079" (2.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Number of Rows | 4 | 4 | 4 | 4 | 4 |
| Number of Columns | - | - | - | - | - |
| Mounting Type | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Through Hole | Through Hole |
| Termination | Solder | Solder | Solder | Solder | Press-Fit |
| Contact Layout, Typical | 8 Power | 8 Power | - | 8 Power | 8 Power |
| Features | Board Guide | Board Guide, Spacer | Board Guide, Spacer | Board Guide | - |
| Contact Finish | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | Flash | Flash | - | Flash | Flash |
| Color | - | - | Natural | - | - |
