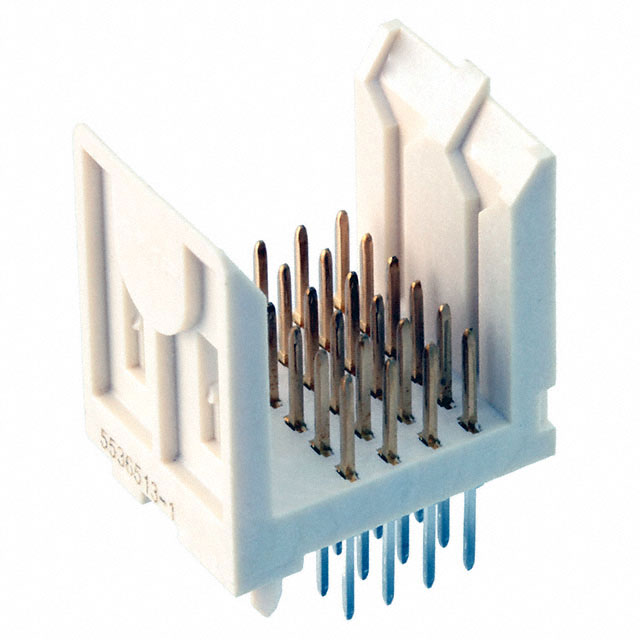

| Part Number | 5536513-1 | 5536513-3 | 5536613-1 | 5536513-2 | 5536513-4 | 5536510-1 | 5536511-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Connector Usage | - | - | - | - | - | - | - |
| Connector Type | Header, Male Pins | Header, Male Pins | Receptacle, Female Blade Sockets | Header, Male Pins | Header, Male Pins | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Connector Style | Futurebus | Futurebus | Futurebus | Futurebus | Futurebus | Futurebus | Futurebus |
| Number of Positions | 24 | 96 | 8 | 48 | 192 | 24 | 24 |
| Number of Positions Loaded | All | All | All | All | All | All | All |
| Pitch | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.236" (6.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Rows | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of Columns | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Board Edge, Through Hole, Right Angle | Through Hole | Through Hole | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Press-Fit |
| Contact Layout, Typical | - | - | 8 Power | - | - | - | - |
| Features | Board Guide | Board Guide | Board Guide, Spacer | Board Guide | Board Guide | Board Guide, Spacer | Board Guide, Spacer |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | - | - | Flash | - | - | - | - |
| Color | - | - | - | - | - | Natural | Natural |
