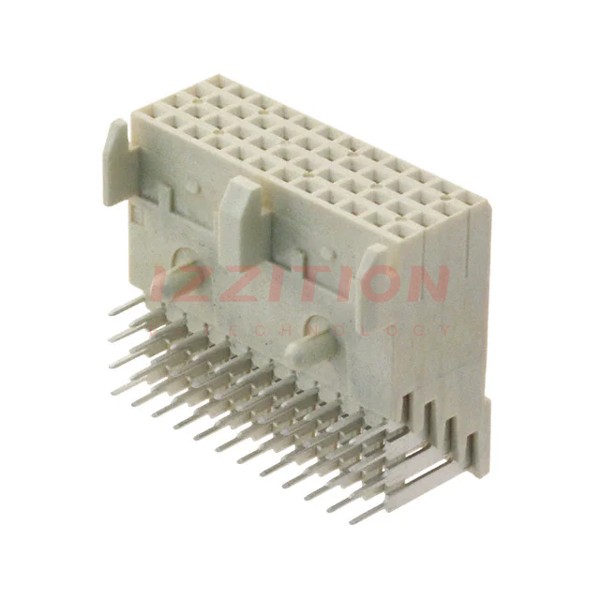

| Part Number | 5536507-2 | 5536507-3 | 5536507-6 | 5536507-4 | 536507-2 | 5536501-2 | 5536504-2 | 5536507-1 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Obsolete | Active | Active | Active |
| Connector Usage | - | - | - | - | - | - | - | - |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Header, Male Pins | Header, Male Pins | Receptacle, Female Sockets |
| Connector Style | Futurebus | Futurebus | Futurebus | Futurebus | Futurebus | Futurebus | Futurebus | Futurebus |
| Number of Positions | 48 | 96 | 120 | 192 | 48 | 48 | 48 | 24 |
| Number of Positions Loaded | All | All | All | All | All | All | All | All |
| Pitch | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Rows | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of Columns | - | - | - | - | - | - | - | - |
| Mounting Type | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Through Hole | Through Hole | Board Edge, Through Hole, Right Angle |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Press-Fit | Solder |
| Contact Layout, Typical | - | - | - | - | - | - | - | - |
| Features | Board Guide, Spacer | Board Guide, Spacer | Board Guide, Spacer | Board Guide, Spacer | Board Guide, Spacer | Board Guide | - | Board Guide, Spacer |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | - | - | - | - | - | 30.0µin (0.76µm) | - | - |
| Color | Natural | Natural | Natural | Natural | Natural | - | Natural | Natural |
