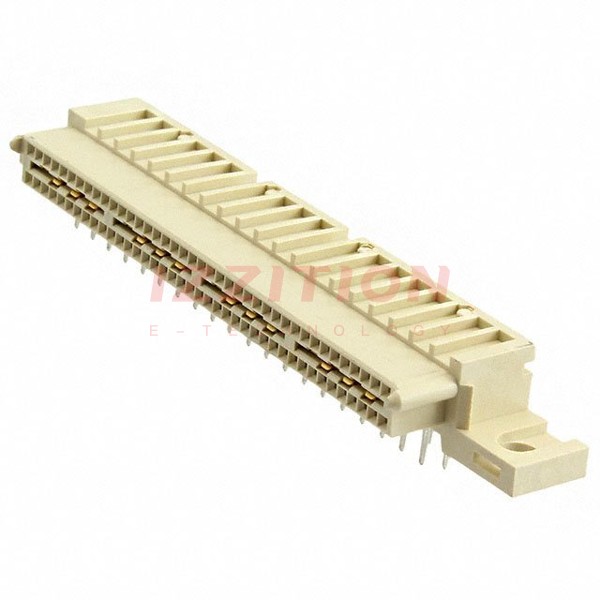

| Part Number | 5536295-3 | 5536295-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Receptacle | Receptacle |
| Contact Type | Female Socket | Female Socket |
| Style | Board to Board | Board to Board |
| Number of Positions | 80 | 40 |
| Number of Positions Loaded | All | All |
| Pitch - Mating | 0.050" (1.27mm) | 0.050" (1.27mm) |
| Number of Rows | 2 | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Insulation Color | Natural | Natural |
| Insulation Height | 0.315" (8.00mm) | 0.315" (8.00mm) |
| Contact Length - Post | 0.095" (2.41mm) | 0.095" (2.41mm) |
| Operating Temperature | -65°C ~ 125°C | -65°C ~ 125°C |
| Material Flammability Rating | - | - |
| Contact Finish - Post | Tin | Tin |
| Mated Stacking Heights | - | - |
| Ingress Protection | - | - |
| Features | Ground Bus (Plane) | Ground Bus (Plane) |
| Current Rating (Amps) | - | - |
| Voltage Rating | 30VAC | 30VAC |
