5536254-1
  • Share:

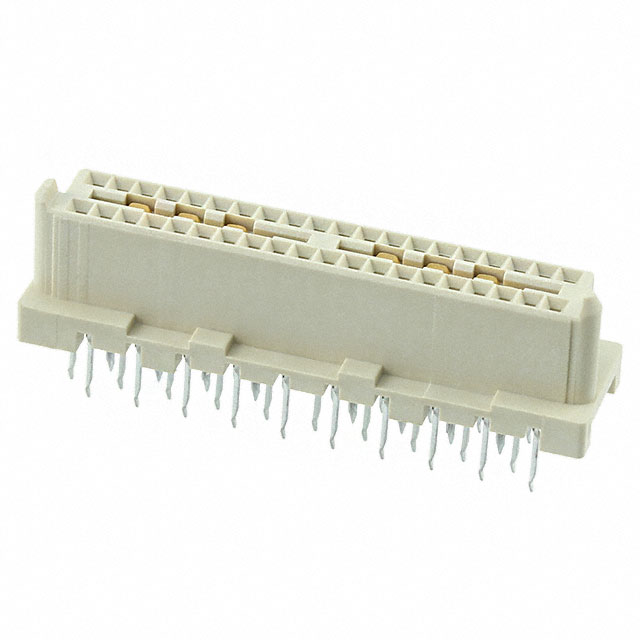

TE Connectivity AMP Connectors 5536254-1

Manufacturer No:
5536254-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
5536254-1 Datasheet
ECAD Model:
-
Description:
CONN RCPT 40POS 0.05 GOLD PCB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board
Number of Positions:40
Number of Positions Loaded:All
Pitch - Mating:0.050" (1.27mm)
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Insulation Color:Natural
Insulation Height:0.320" (8.13mm)
Contact Length - Post:0.125" (3.18mm)
Operating Temperature:-65°C ~ 125°C
Material Flammability Rating:-
Contact Finish - Post:Tin
Mated Stacking Heights:10.92mm, 17.78mm, 18.75mm
Ingress Protection:-
Features:Board Guide, Ground Bus (Plane)
Current Rating (Amps):-
Voltage Rating:30VAC
0 Remaining View Similar

In Stock

$0.89
284

Please send RFQ , we will respond immediately.
