Please send RFQ , we will respond immediately.

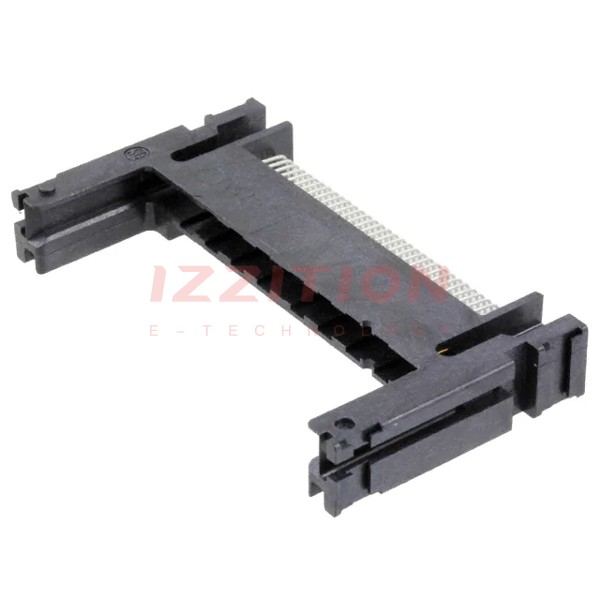

| Part Number | 5535657-2 | 5535653-2 | 5535655-2 | 5535657-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Card Type | PCMCIA | PCMCIA | PCMCIA | PCMCIA |
| Number of Positions | 68 | 68 | 68 | 68 |
| Connector Type | Connector | Connector | Connector | Connector |
| Insertion, Removal Method | Push In, Pull Out | Push In, Pull Out | Push In, Pull Out | Push In, Pull Out |
| Ejector Side | - | - | - | - |
| Mounting Type | Surface Mount, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Surface Mount, Right Angle |
| Features | Board Guide, Card Guide | Card Guides | - | Board Guide, Card Guide |
| Height Above Board | 0.378" (9.60mm) | 0.275" (6.99mm) | 0.378" (9.60mm) | 0.378" (9.60mm) |
| Mounting Feature | Normal, Standard - Top | Normal, Standard - Top | Normal, Standard - Top | Normal, Standard - Top |
| Contact Finish | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
