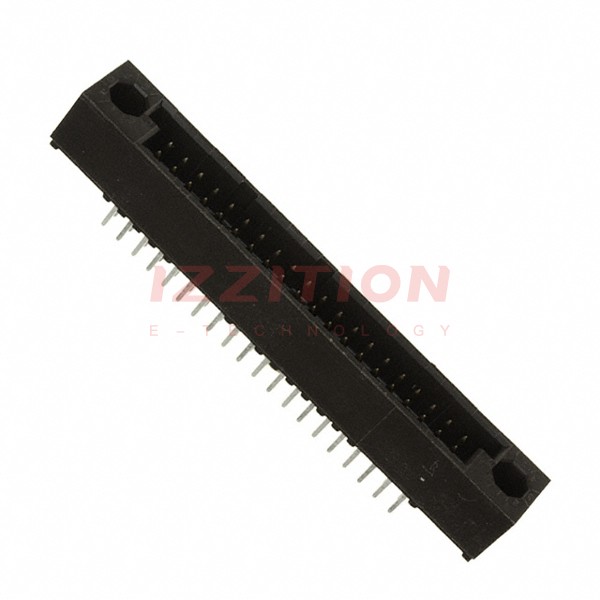

| Part Number | 5532430-3 | 5532430-5 | 5532431-3 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Usage | - | - | - |
| Connector Type | Header, Male Pins | Header, Male Pins | Receptacle, Female Sockets |
| Connector Style | High Density (HDC, HDI, HPC) | High Density (HDC, HDI, HPC) | High Density (HDC, HDI, HPC) |
| Number of Positions | 40 | 60 | 96 |
| Number of Positions Loaded | All | All | All |
| Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 2 | 2 | 3 |
| Number of Columns | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole, Right Angle |
| Termination | Solder | Solder | Solder |
| Contact Layout, Typical | - | - | - |
| Features | Mating Guide | Mating Guide | Mating Guide |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | Natural | Natural | Natural |
