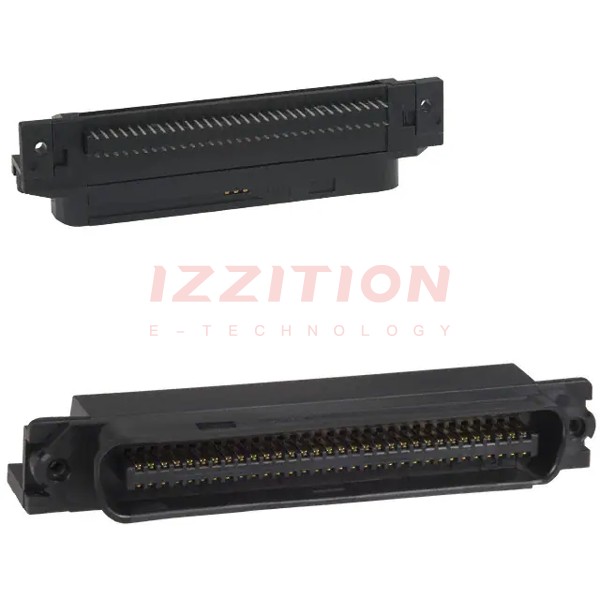

| Part Number | 552745-1 | 5552745-1 | 552725-1 | 552740-1 | 552741-1 | 552742-1 | 552744-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Connector Style | Center Strip Contacts | Center Strip Contacts | Outer Shroud Contacts | Outer Shroud Contacts | Center Strip Contacts | Outer Shroud Contacts | Outer Shroud Contacts |
| Connector Type | Plug | Plug | Receptacle | Receptacle | Plug | Receptacle | Receptacle |
| Number of Positions | 64 | 64 | 50 | 24 | 24 | 36 | 64 |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Flange Feature | Tapped, Threaded (4-40) | Tapped, Threaded (4-40) | Tapped, Threaded (4-40) | Housing/Shell (4-40) | Tapped, Threaded (4-40) | Housing/Shell (4-40) | Tapped, Threaded (4-40) |
| Type | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | Flash |
