Please send RFQ , we will respond immediately.

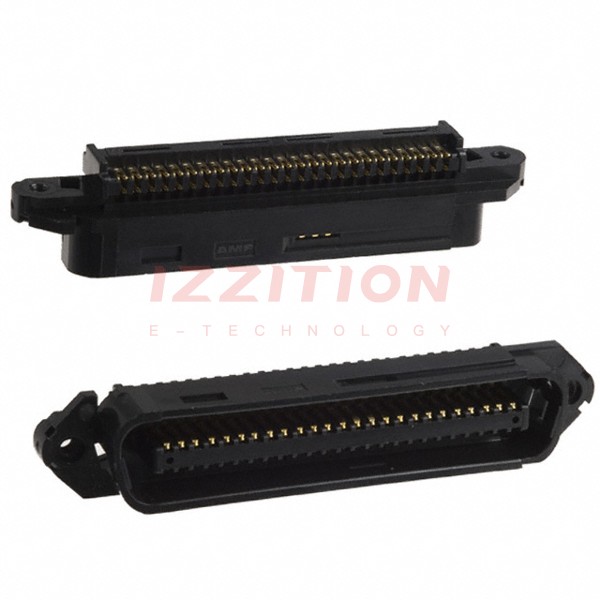

| Part Number | 552390-1 | 552391-1 | 552300-1 | 552320-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Style | Center Strip Contacts | Outer Shroud Contacts | Center Strip Contacts | Center Strip Contacts |
| Connector Type | Plug | Receptacle | Plug | Plug |
| Number of Positions | 50 | 50 | 14 | 64 |
| Number of Rows | 2 | 2 | 2 | 2 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | IDC | IDC | IDC | IDC |
| Flange Feature | Housing/Shell (4-40) | Housing/Shell (4-40) | Housing/Shell (4-40) | - |
| Type | - | - | - | - |
| Features | - | - | - | Bail Lock |
| Contact Finish | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
