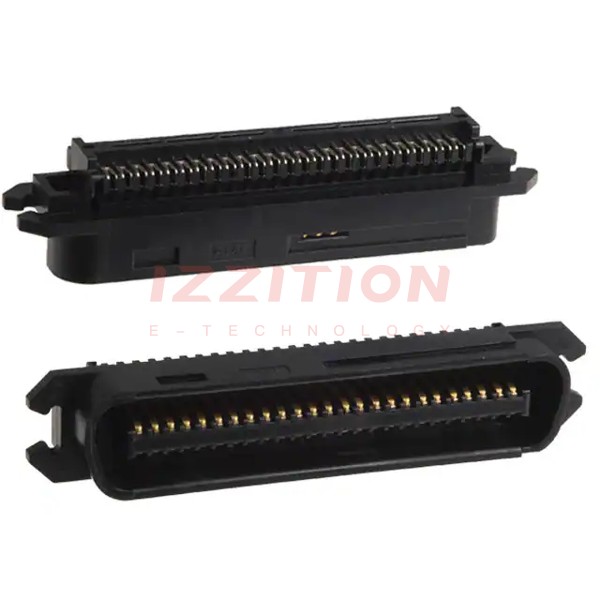

| Part Number | 552319-1 | 552312-1 | 552313-1 | 552314-1 | 552315-1 | 552317-1 | 552318-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete | Obsolete | Active | Active | Active | Active |
| Connector Style | Center Strip Contacts | Outer Shroud Contacts | Outer Shroud Contacts | Outer Shroud Contacts | Outer Shroud Contacts | Center Strip Contacts | Center Strip Contacts |
| Connector Type | Plug | Receptacle | Receptacle | Receptacle | Receptacle | Plug | Plug |
| Number of Positions | 50 | 14 | 24 | 36 | 64 | 24 | 36 |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | IDC | IDC | IDC | IDC | IDC | IDC | IDC |
| Flange Feature | - | Housing/Shell (4-40) | Housing/Shell (4-40) | Housing/Shell (4-40) | Housing/Shell (4-40) | - | - |
| Type | - | - | - | - | - | - | - |
| Features | Bail Lock | - | - | - | - | Bail Lock | Bail Lock |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | Flash | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
