Please send RFQ , we will respond immediately.

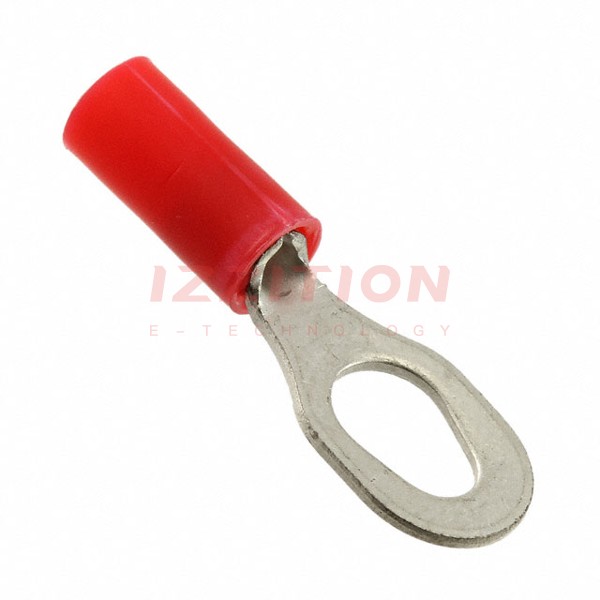

| Part Number | 54774-1 | 54774-2 | 54775-1 | 54754-1 | 54771-1 | 54773-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Terminal Type | Multi-Stud | Multi-Stud | Multi-Stud | Circular | Multi-Stud | Multi-Stud |
| Stud/Tab Size | 6, 8, 10 Stud | 6, 8, 10 Stud | 6, 8, 10 Stud | 1/4 Stud | 6, 8, 10 Stud | 6, 8, 10 Stud |
| Thickness | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.045" (1.14mm) | 0.031" (0.79mm) | 0.039" (0.99mm) |
| Width - Outer Edges | 0.325" (8.26mm) | 0.325" (8.26mm) | 0.325" (8.26mm) | 0.500" (12.70mm) | 0.325" (8.26mm) | 0.325" (8.26mm) |
| Length - Overall | 0.969" (24.60mm) | 0.969" (24.61mm) | 0.969" (24.61mm) | - | 0.957" (24.30mm) | 1.165" (29.59mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 16-22 AWG | 14-16 AWG | 6 AWG | 16-22 AWG | 10-12 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated with Heat Shrink | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Red | Red | Blue | Blue | Red | Yellow |
| Contact Material | Copper | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin |
