Please send RFQ , we will respond immediately.

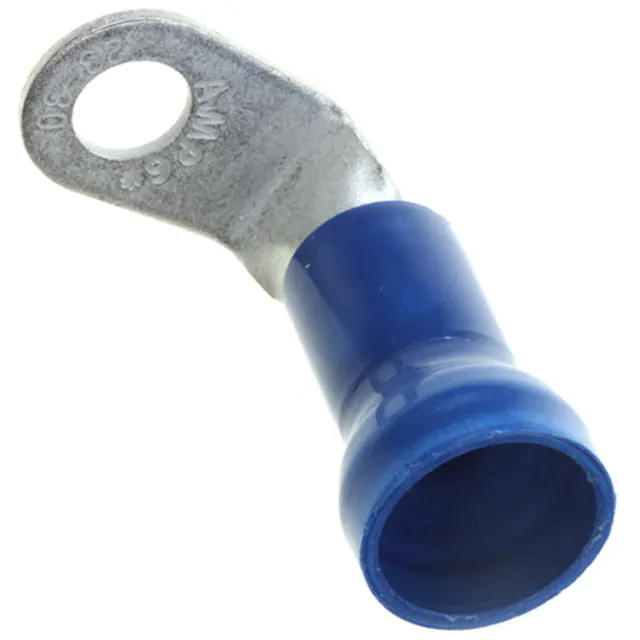

| Part Number | 54754-1 | 54774-1 | 54753-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Circular | Multi-Stud | Circular |
| Stud/Tab Size | 1/4 Stud | 6, 8, 10 Stud | 10 Stud |
| Thickness | 0.045" (1.14mm) | 0.031" (0.79mm) | 0.048" (1.22mm) |
| Width - Outer Edges | 0.500" (12.70mm) | 0.325" (8.26mm) | - |
| Length - Overall | - | 0.969" (24.60mm) | - |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 6 AWG | 16-22 AWG | 6 AWG |
| Insulation | Insulated with Heat Shrink | Insulated | Insulated with Heat Shrink |
| Features | Serrated Termination | Serrated Termination | - |
| Color | Blue | Red | Blue |
| Contact Material | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin |
