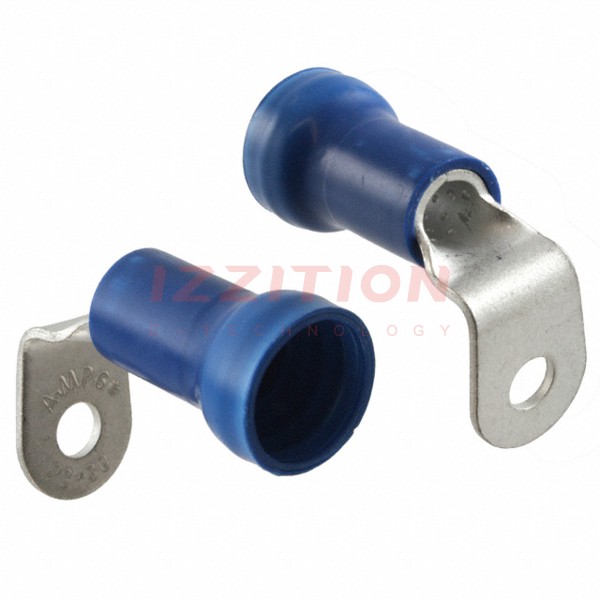

| Part Number | 54753-1 | 54773-1 | 54754-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Circular | Multi-Stud | Circular |
| Stud/Tab Size | 10 Stud | 6, 8, 10 Stud | 1/4 Stud |
| Thickness | 0.048" (1.22mm) | 0.039" (0.99mm) | 0.045" (1.14mm) |
| Width - Outer Edges | - | 0.325" (8.26mm) | 0.500" (12.70mm) |
| Length - Overall | - | 1.165" (29.59mm) | - |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 6 AWG | 10-12 AWG | 6 AWG |
| Insulation | Insulated with Heat Shrink | Insulated | Insulated with Heat Shrink |
| Features | - | Serrated Termination | Serrated Termination |
| Color | Blue | Yellow | Blue |
| Contact Material | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin |
