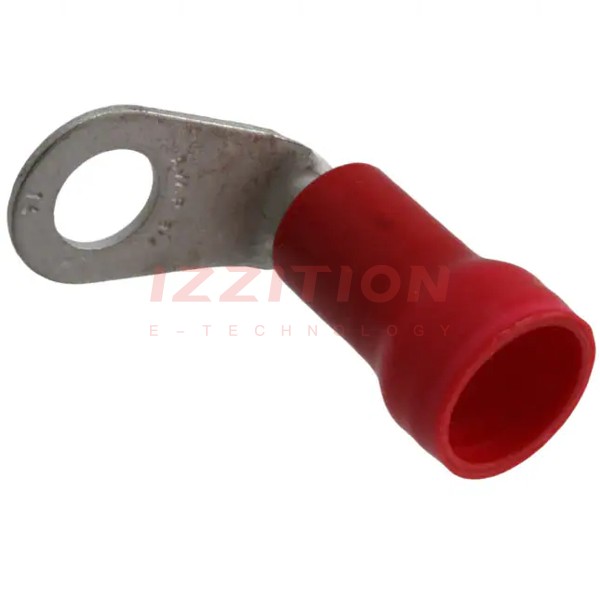

| Part Number | 54725-1 | 54775-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Circular | Multi-Stud |
| Stud/Tab Size | 1/4 Stud | 6, 8, 10 Stud |
| Thickness | 0.040" (1.02mm) | 0.031" (0.79mm) |
| Width - Outer Edges | 0.478" (12.14mm) | 0.325" (8.26mm) |
| Length - Overall | - | 0.969" (24.61mm) |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) |
| Termination | Crimp | Crimp |
| Wire Gauge | 8 AWG | 14-16 AWG |
| Insulation | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination |
| Color | Red | Blue |
| Contact Material | Copper | Copper |
| Contact Finish | Tin | Tin |
