Please send RFQ , we will respond immediately.

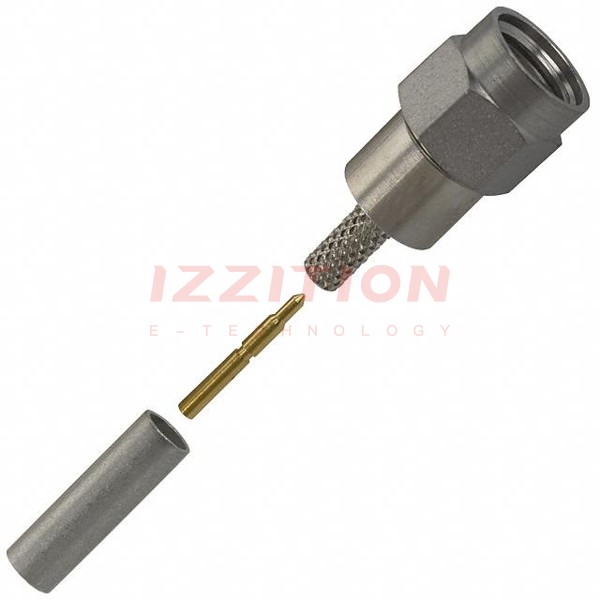

| Part Number | 5447647-3 | 5447648-3 | 5447647-1 | 5447647-2 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Style | SMA | SMA | SMA | SMA |
| Connector Type | Plug, Male Pin | Jack, Female Socket | Plug, Male Pin | Plug, Male Pin |
| Contact Termination | Crimp | Crimp | Crimp | Crimp |
| Shield Termination | Crimp | Crimp | Crimp | Crimp |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - | - | - |
| Cable Group | RG-174, 188A, 316 | RG-174, 188, 316 | RG-58, 58A, 58B, 58C | RG-142, 142A, 142B, 400 |
| Fastening Type | Threaded | Threaded | Threaded | Threaded |
| Frequency - Max | 12.4 GHz | 12.4 GHz | 12.4 GHz | 12.4 GHz |
| Number of Ports | 1 | 1 | 1 | 1 |
| Features | - | - | - | - |
| Housing Color | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - |
| Center Contact Material | - | Beryllium Copper | - | - |
