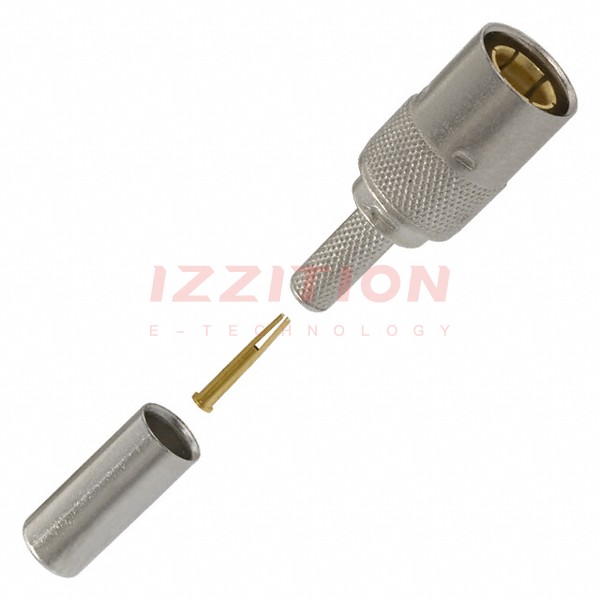

| Part Number | 5415487-1 | 5415417-1 | 5415484-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete |
| Connector Style | SMB, Mini | BNC | SMB, Mini |
| Connector Type | Plug, Female Socket | Jack, Female Socket | Plug, Female Socket |
| Contact Termination | Crimp | Solder | Solder |
| Shield Termination | Crimp | Solder | Crimp |
| Impedance | 75Ohm | 75Ohm | 75Ohm |
| Mounting Type | Free Hanging (In-Line) | Panel Mount, Through Hole, Right Angle | Free Hanging (In-Line), Right Angle |
| Mounting Feature | - | Bulkhead - Front Side Nut | - |
| Cable Group | RG-179 | - | RG-179 |
| Fastening Type | Snap-On | Bayonet Lock | Snap-On |
| Frequency - Max | 4 GHz | 2 GHz | 4 GHz |
| Number of Ports | 1 | 1 | 1 |
| Features | - | Board Lock | - |
| Housing Color | Silver | Silver | Silver |
| Ingress Protection | - | - | - |
| Center Contact Material | Beryllium Copper | Phosphor Bronze | Beryllium Copper |
