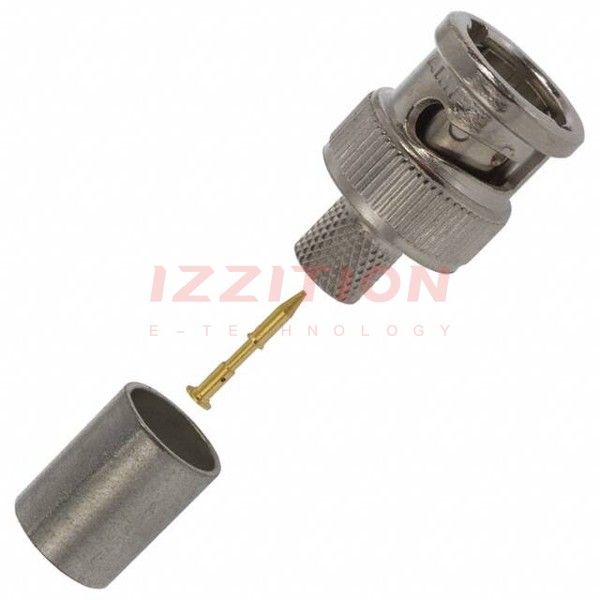

| Part Number | 5413589-5 | 5413589-7 | 5413589-9 | 5413589-8 | 5413589-1 | 5413589-2 | 5413589-3 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Style | BNC | BNC | BNC | BNC | BNC | BNC | BNC |
| Connector Type | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Shield Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Impedance | 75Ohm | 75Ohm | 75Ohm | 75Ohm | 75Ohm | 75Ohm | 75Ohm |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - | - | - | - | - | - |
| Cable Group | Belden 8281, 9231 | AT&T 734A | RG-59, Belden 9240, 9259, 9266 | RG-179, 179A, 179B, 187, 187A | Belden 88241 | RG-59, 59A, 59B | Belden 8218 |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Frequency - Max | 2 GHz | 2 GHz | 2 GHz | 2 GHz | 2 GHz | 2 GHz | 2 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | - | - | - | - | - |
| Housing Color | Silver | Silver | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - | - | - | - |
| Center Contact Material | Brass | Brass | Brass | Brass | Brass | Brass | Brass |
