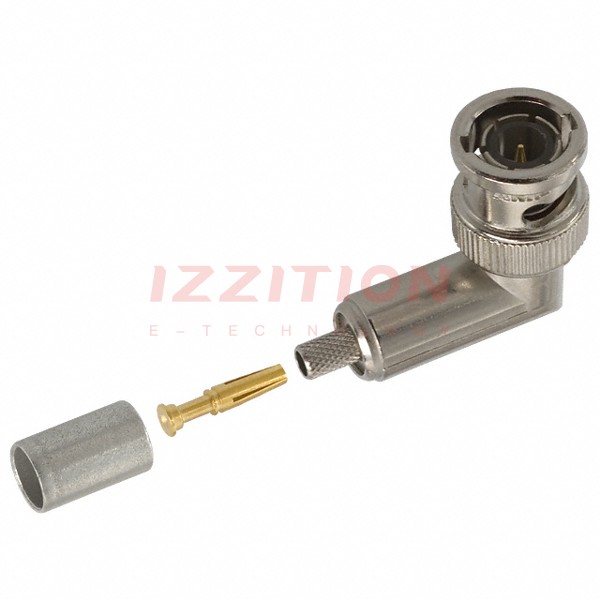

| Part Number | 5413588-2 | 5413589-2 | 5413588-9 | 5413588-8 | 5413588-4 | 5413558-2 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active | Obsolete |
| Connector Style | BNC | BNC | BNC | BNC | BNC | BNC |
| Connector Type | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin | Jack, Female Socket |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Solder |
| Shield Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Solder |
| Impedance | 75Ohm | 75Ohm | 75Ohm | 75Ohm | 75Ohm | 75Ohm |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Through Hole, Right Angle |
| Mounting Feature | - | - | - | - | - | - |
| Cable Group | RG-59, 59A, 59B | RG-59, 59A, 59B | Belden 9240, 9259, 9266 | RG-179, 179A, 179B, 187, 187A | AT&T KS19224-L2 | - |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Frequency - Max | 2 GHz | 2 GHz | 2 GHz | 2 GHz | 2 GHz | 2 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | - | - | - | - |
| Housing Color | Silver | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - | - | - |
| Center Contact Material | Beryllium Copper | Brass | Beryllium Copper | Beryllium Copper | Beryllium Copper | Beryllium Copper |
