Please send RFQ , we will respond immediately.

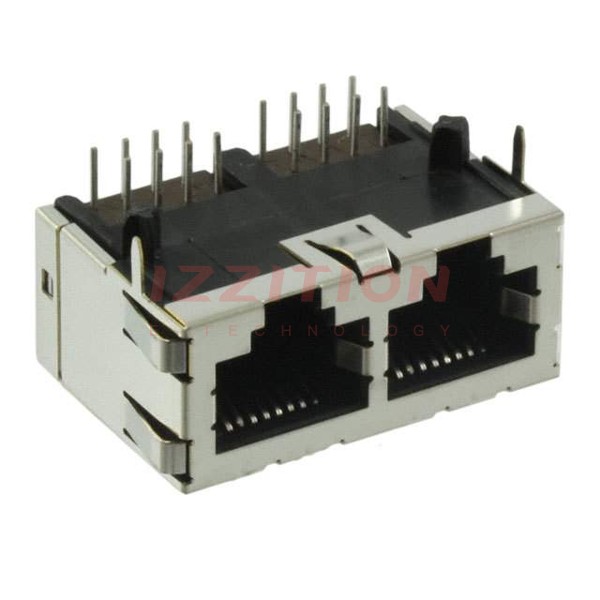

| Part Number | 5406566-1 | 5406566-2 | 5406526-1 | 5406556-1 | 5406562-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Obsolete | Active |
| Connector Type | Jack | Jack | Jack | Jack | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | 8p8c (RJ45, Ethernet) | 8p8c (RJ45, Ethernet) | 8p8c (RJ45, Ethernet) | 8p8c (RJ45, Ethernet) |
| Number of Ports | 2 | 2 | 2 | 8 | 2 |
| Number of Rows | 1 | 1 | 1 | 1 | 1 |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Orientation | 90° Angle (Right) | 90° Angle (Right) | 90° Angle (Right) | 90° Angle (Right) | 90° Angle (Right) |
| Termination | Solder | Solder | Solder | Solder | Solder |
| Shielding | Shielded, EMI Finger | Shielded, EMI Finger | Unshielded | Shielded, EMI Finger | Shielded, EMI Finger |
| Ratings | Cat5 | Cat5 | Cat5 | Cat5 | Cat4 |
| Features | Board Guide | Board Guide | Board Guide | Board Guide | Board Guide |
| LED Color | Does Not Contain LED | Does Not Contain LED | Does Not Contain LED | Yellow - Green | Does Not Contain LED |
| Ingress Protection | - | - | - | - | - |
| Tab Direction | Down | Down | Up | Up | Down |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Gold | Gold | Gold | Gold | Gold |
