540-AG10D-ES
  • Share:

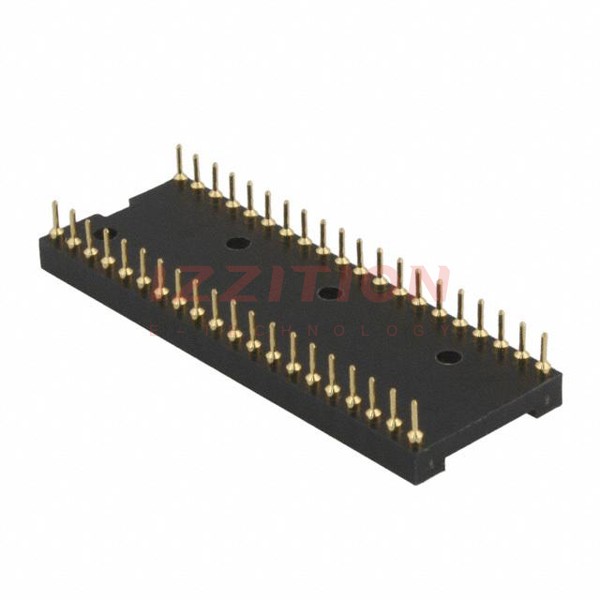

TE Connectivity AMP Connectors 540-AG10D-ES

Manufacturer No:
540-AG10D-ES
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
540-AG10D-ES Datasheet
ECAD Model:
-
Description:
CONN IC DIP SOCKET 40POS GOLD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid):40 (2 x 20)
Pitch - Mating:0.100" (2.54mm)
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Contact Material - Mating:Beryllium Copper
Mounting Type:Through Hole
Features:Closed Frame
Termination:Solder
Pitch - Post:0.100" (2.54mm)
Contact Finish - Post:-
Contact Finish Thickness - Post:-
Contact Material - Post:Brass
Housing Material:-
Operating Temperature:-55°C ~ 125°C
0 Remaining View Similar

In Stock

$8.24
25

Please send RFQ , we will respond immediately.

Similar Products

Part Number 540-AG10D-ES 540-AG11D-ES
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Obsolete Obsolete
Type DIP, 0.6" (15.24mm) Row Spacing DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) 40 (2 x 20) 40 (2 x 20)
Pitch - Mating 0.100" (2.54mm) 0.100" (2.54mm)
Contact Finish - Mating Gold Gold
Contact Finish Thickness - Mating - -
Contact Material - Mating Beryllium Copper Copper Alloy
Mounting Type Through Hole Through Hole
Features Closed Frame Closed Frame
Termination Solder Solder
Pitch - Post 0.100" (2.54mm) 0.100" (2.54mm)
Contact Finish - Post - Tin-Lead
Contact Finish Thickness - Post - -
Contact Material - Post Brass Copper Alloy
Housing Material - Polyester
Operating Temperature -55°C ~ 125°C -55°C ~ 105°C
