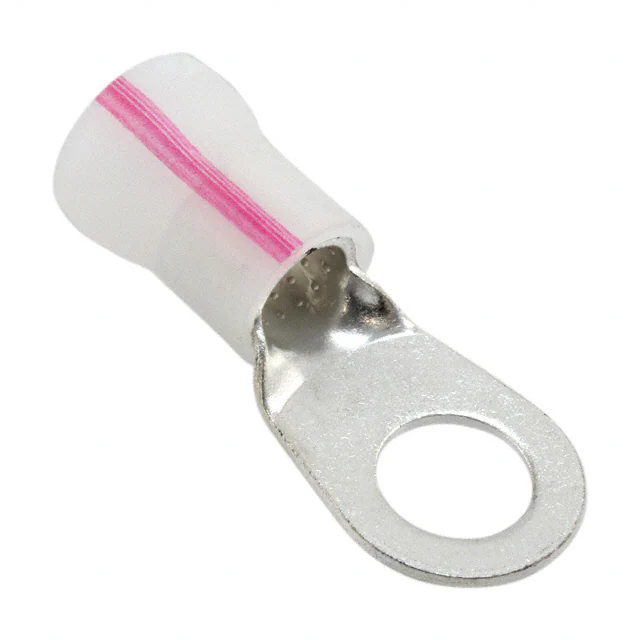

| Part Number | 53954-1 | 53964-1 | 53984-1 | 53951-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | D-Shaped | Circular | Circular | Circular |
| Stud/Tab Size | 1/2 Stud | 6 Stud | 1/4 Stud | 1/2 Stud |
| Thickness | 0.057" (1.45mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.048" (1.22mm) |
| Width - Outer Edges | 0.855" (21.72mm) | 0.343" (8.71mm) | 0.531" (13.49mm) | 0.679" (17.25mm) |
| Length - Overall | 2.161" (54.89mm) | 1.046" (26.57mm) | 1.296" (32.92mm) | 2.014" (51.16mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 2 AWG | 14-16 AWG | 14-16 AWG | 4 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated |
| Features | Radiation Resistant, Serrated Termination | Heavy Duty | Heavy Duty, Serrated Termination | Radiation Resistant, Serrated Termination |
| Color | Natural, Red Stripe | Natural, Black Stripe | Natural, Black Stripe | Natural, Yellow Stripe |
| Contact Material | Copper | Copper | Copper | Copper |
| Contact Finish | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead |
