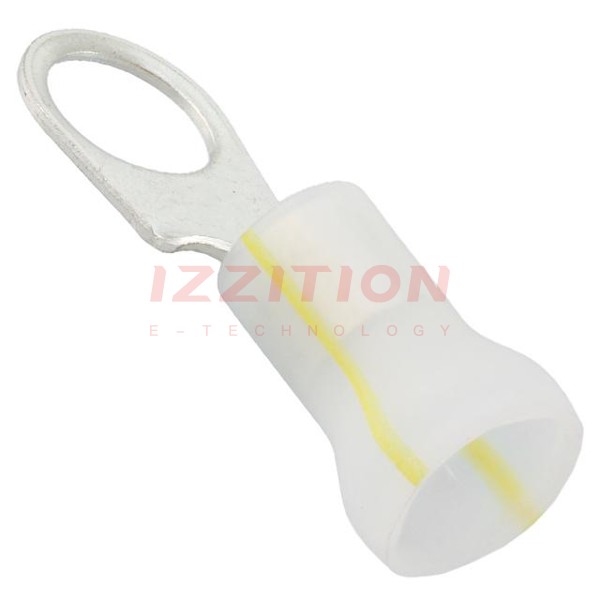

| Part Number | 53951-1 | 53954-1 | 53941-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Circular | D-Shaped | Circular |
| Stud/Tab Size | 1/2 Stud | 1/2 Stud | 8 Stud |
| Thickness | 0.048" (1.22mm) | 0.057" (1.45mm) | 0.031" (0.79mm) |
| Width - Outer Edges | 0.679" (17.25mm) | 0.855" (21.72mm) | 0.312" (7.92mm) |
| Length - Overall | 2.014" (51.16mm) | 2.161" (54.89mm) | 0.813" (20.65mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 4 AWG | 2 AWG | 14-16 AWG |
| Insulation | Insulated | Insulated | Insulated |
| Features | Radiation Resistant, Serrated Termination | Radiation Resistant, Serrated Termination | Serrated Termination |
| Color | Natural, Yellow Stripe | Natural, Red Stripe | Blue |
| Contact Material | Copper | Copper | Copper |
| Contact Finish | Tin-Lead | Tin-Lead | Tin |
