Please send RFQ , we will respond immediately.

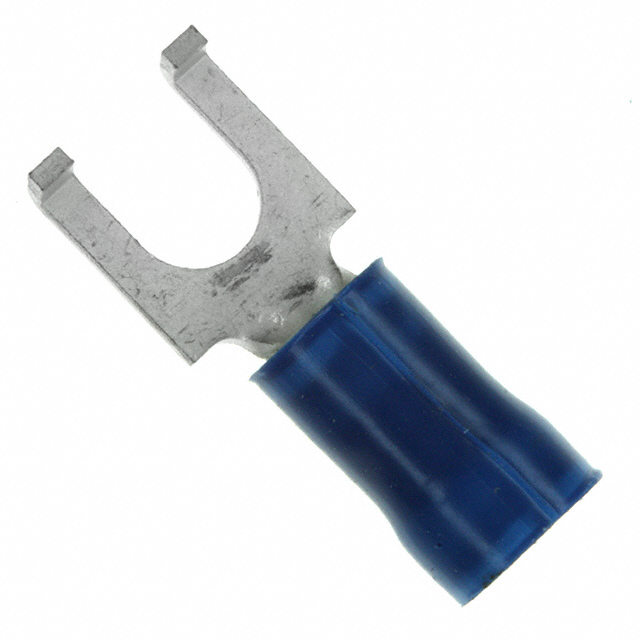

| Part Number | 53874-2 | 53274-2 | 53834-2 | 53874-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Flanged | Spring, Snap | Spring, Snap | Flanged |
| Stud/Tab Size | 8 Stud | 10 Stud | 10 Stud | 8 Stud |
| Width - Outer Edges | 0.294" (7.47mm) | 0.312" (7.92mm) | 0.294" (7.47mm) | 0.294" (7.47mm) |
| Length - Overall | 0.780" (19.81mm) | 0.777" (19.74mm) | 0.685" (17.40mm) | 0.780" (19.81mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 14-16 AWG | 10-12 AWG | 14-16 AWG | 14-16 AWG |
| Insulation | Insulated | Non-Insulated | Non-Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Brazed Seam, Serrated Termination | Serrated Termination |
| Color | Blue | - | - | Blue |
| Contact Finish | Tin | Tin | Tin | Tin |
| Contact Material | Copper | Phosphor Bronze | Phosphor Bronze | Copper |
