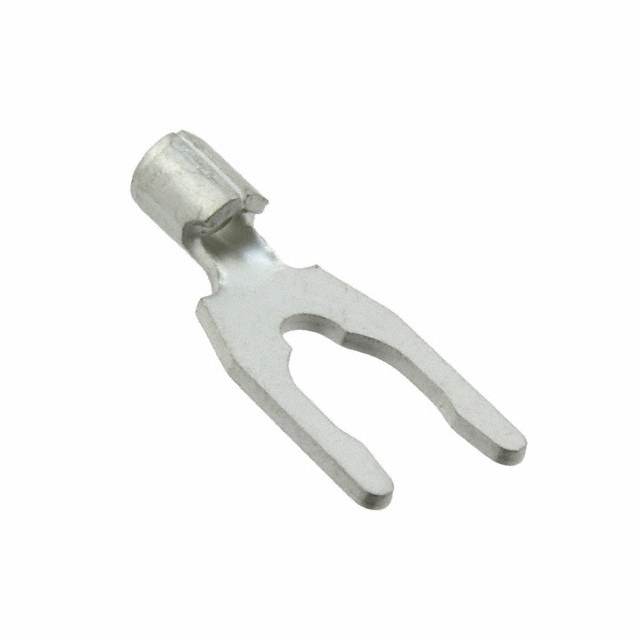

| Part Number | 53832-2 | 53836-2 | 53835-2 | 53834-2 | 53833-2 | 53831-2 | 53832-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap | Spring, Snap |
| Stud/Tab Size | 10 Stud | 10 Stud | 8 Stud | 10 Stud | 8 Stud | 8 Stud | 10 Stud |
| Width - Outer Edges | 0.294" (7.47mm) | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.294" (7.47mm) | 0.244" (6.20mm) | 0.244" (6.20mm) | 0.294" (7.47mm) |
| Length - Overall | 0.685" (17.40mm) | 0.777" (19.74mm) | 0.729" (18.52mm) | 0.685" (17.40mm) | 0.637" (16.18mm) | 0.637" (16.18mm) | 0.685" (17.40mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 10-12 AWG | 10-12 AWG | 14-16 AWG | 14-16 AWG | 16-22 AWG | 16-22 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Features | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination |
| Color | - | - | - | - | - | - | - |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
