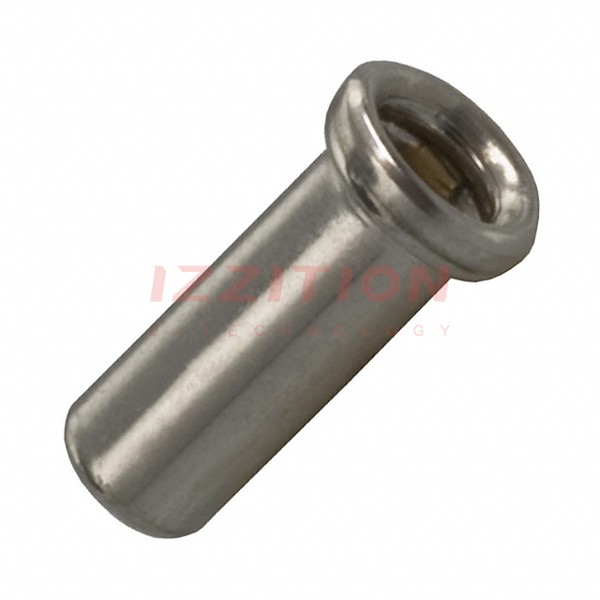

| Part Number | 5380635-2 | 5380635-5 | 380635-2 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Obsolete |
| Tail Type | No Tail | No Tail | No Tail |
| Termination | Solder | Solder | Solder |
| Length - Overall | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Accepts Pin Diameter | 0.018" ~ 0.040" (0.46mm ~ 1.02mm) | 0.018" ~ 0.040" (0.46mm ~ 1.02mm) | 0.018" ~ 0.040" (0.46mm ~ 1.02mm) |
| Accepts Square Pin Size | - | - | - |
| Pin Hole Diameter | 0.048" (1.22mm) | 0.048" (1.22mm) | 0.048" (1.22mm) |
| Mounting Hole Diameter | 0.086" ~ 0.089" (2.18mm ~ 2.26mm) | 0.086" ~ 0.089" (2.18mm ~ 2.26mm) | 0.086" ~ 0.089" (2.18mm ~ 2.26mm) |
| Flange Diameter | 0.125" (3.18mm) | 0.125" (3.18mm) | 0.125" (3.18mm) |
| Tail Diameter | - | - | - |
| Socket Depth | 0.145" (3.68mm) | 0.145" (3.68mm) | 0.145" (3.68mm) |
| Contact Material | Beryllium Copper | Beryllium Copper | Beryllium Copper |
| Contact Finish | Gold | Tin | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 80.0µin (2.03µm) | 30.0µin (0.76µm) |
