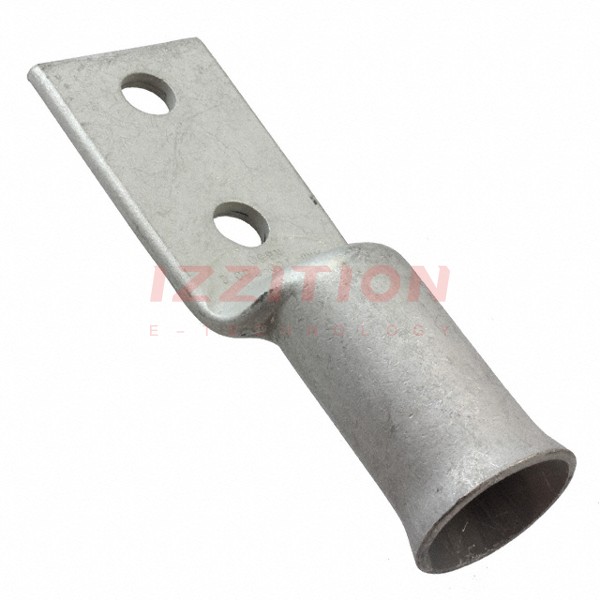

| Part Number | 53686-2 | 53680-2 | 53681-2 | 53682-2 | 53683-2 | 53684-2 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard | Rectangular Tongue | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud | 1/2 Stud | 1/2 Stud | 1/2 Stud | 1/2 Stud | 1/2 Stud |
| Terminal Style | Two Stud Holes | Two Stud Holes | Two Stud Holes | Two Stud Holes | Two Stud Holes | Two Stud Holes |
| Tab Thickness | 0.240" (6.10mm) | 0.100" (2.54mm) | 0.110" (2.79mm) | 0.120" (3.05mm) | 0.130" (3.30mm) | 0.160" (4.06mm) |
| Length - Overall | 6.350" (161.29mm) | 4.270" (108.46mm) | 4.470" (113.54mm) | 4.690" (119.13mm) | 4.940" (125.48mm) | 5.252" (133.40mm) |
| Width - Outer Edges | 2.120" (53.84mm) | 0.850" (21.59mm) | 0.970" (24.64mm) | 1.080" (27.43mm) | 1.190" (30.23mm) | 1.400" (35.56mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp, Barrel | Crimp, Barrel | Crimp, Barrel | Crimp, Barrel | Crimp, Barrel | Crimp, Barrel |
| Wire Gauge | 700MCM (kcmil) | 1/0 AWG | 2/0 AWG | 3/0 AWG | 4/0 AWG | 300MCM (kcmil) |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Features | - | - | - | - | - | - |
| Color | - | - | - | - | - | - |
