Please send RFQ , we will respond immediately.

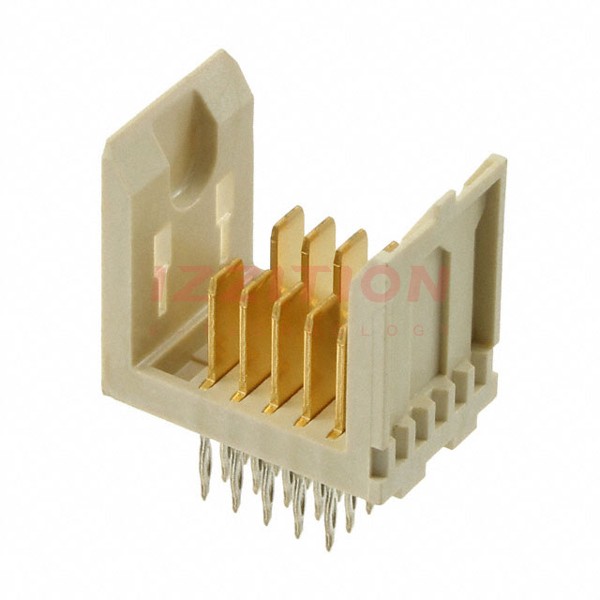

| Part Number | 536642-1 | 5536642-1 | 536649-1 | 536622-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Active | Active |
| Connector Usage | - | - | - | - |
| Connector Type | Header, Male Blades | Header, Male Blades | Receptacle, Female Blade Sockets | Header, Male Blades |
| Connector Style | Futurebus | Futurebus | Futurebus | Futurebus |
| Number of Positions | 10 | 10 | 10 | 8 |
| Number of Positions Loaded | All | All | All | All |
| Pitch | 0.236" (6.00mm) | 0.236" (6.00mm) | - | - |
| Number of Rows | 5 | 5 | 5 | 4 |
| Number of Columns | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Board Edge, Through Hole, Right Angle | Through Hole |
| Termination | Press-Fit | Press-Fit | Press-Fit | Solder |
| Contact Layout, Typical | 10 Power | 10 Power | 10 Power | 8 Power |
| Features | - | - | Board Guide, Spacer | - |
| Contact Finish | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | Flash | Flash | Flash | 30.0µin (0.76µm) |
| Color | Natural | Natural | - | - |
