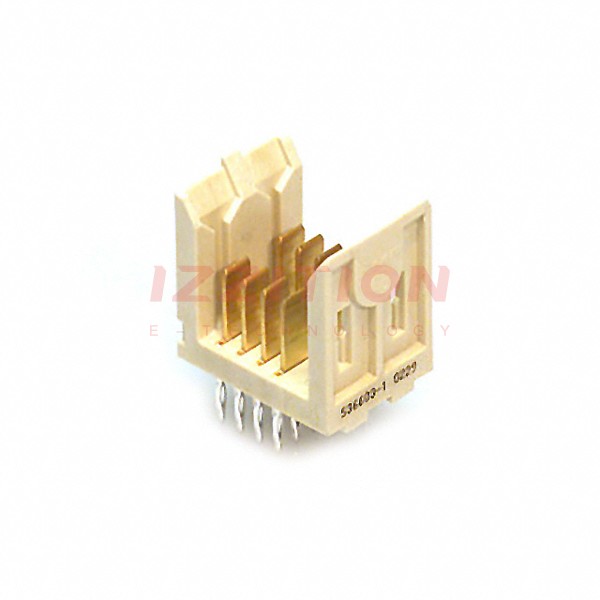

| Part Number | 536603-1 | 5536603-1 | 536607-1 | 536613-1 | 536606-1 | 536600-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Obsolete | Active | Active | Obsolete |
| Connector Usage | - | - | - | - | - | - |
| Connector Type | Header, Male Blades | Header, Male Blades | Receptacle, Female Blade Sockets | Receptacle, Female Blade Sockets | Header, Male Blades | Header, Male Blades |
| Connector Style | Futurebus | Futurebus | Futurebus | Futurebus | Futurebus | Futurebus |
| Number of Positions | 8 | 8 | 8 | 8 | 8 | 8 |
| Number of Positions Loaded | All | All | All | All | All | All |
| Pitch | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | - | 0.236" (6.00mm) | - |
| Number of Rows | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of Columns | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Through Hole | Through Hole |
| Termination | Press-Fit | Press-Fit | Solder | Solder | Press-Fit | Solder |
| Contact Layout, Typical | 8 Power | 8 Power | 8 Power | 8 Power | 8 Power | 8 Power |
| Features | - | - | Board Guide, Spacer | Board Guide, Spacer | - | Board Guide |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | Flash | Flash | Flash | Flash | Flash | Flash |
| Color | - | - | - | - | Natural | - |
