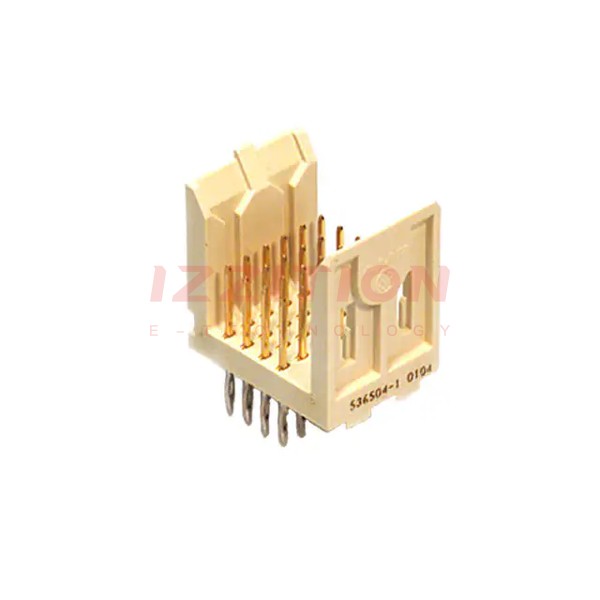

| Part Number | 536504-1 | 5536504-1 | 536504-2 | 536504-3 | 536507-1 | 536504-4 | 536501-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Obsolete | Active | Active |
| Connector Usage | - | - | - | - | - | - | - |
| Connector Type | Header, Male Pins | Header, Male Pins | Header, Male Pins | Header, Male Pins | Receptacle, Female Sockets | Header, Male Pins | Header, Male Pins |
| Connector Style | Futurebus | Futurebus | Futurebus | Futurebus | Futurebus | Futurebus | Futurebus |
| Number of Positions | 24 | 24 | 48 | 96 | 24 | 192 | 24 |
| Number of Positions Loaded | All | All | All | All | All | All | All |
| Pitch | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Rows | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of Columns | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Board Edge, Through Hole, Right Angle | Through Hole | Through Hole |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Solder | Press-Fit | Solder |
| Contact Layout, Typical | - | - | - | - | - | - | - |
| Features | - | - | - | - | Board Guide, Spacer | - | Board Guide |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | - | - | - | - | - | - | 30.0µin (0.76µm) |
| Color | Natural | Natural | Natural | Natural | Natural | Natural | - |
