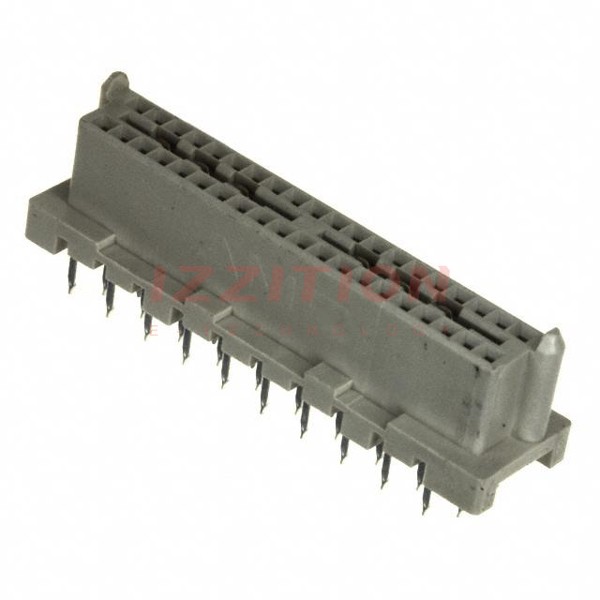

| Part Number | 536279-1 | 536279-2 | 536279-3 | 5536279-1 | 536279-4 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket |
| Style | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board |
| Number of Positions | 40 | 60 | 80 | 40 | 100 |
| Number of Positions Loaded | All | All | All | All | All |
| Pitch - Mating | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) |
| Number of Rows | 2 | 2 | 2 | 2 | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull |
| Contact Finish - Mating | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Insulation Color | Natural | Natural | Natural | Natural | Natural |
| Insulation Height | 0.320" (8.13mm) | 0.320" (8.13mm) | 0.320" (8.13mm) | 0.320" (8.13mm) | 0.320" (8.13mm) |
| Contact Length - Post | 0.095" (2.41mm) | 0.095" (2.41mm) | 0.095" (2.41mm) | 0.095" (2.41mm) | 0.095" (2.41mm) |
| Operating Temperature | -65°C ~ 125°C | -65°C ~ 125°C | -65°C ~ 125°C | -65°C ~ 125°C | -65°C ~ 125°C |
| Material Flammability Rating | - | - | - | - | - |
| Contact Finish - Post | Tin-Lead | Tin-Lead | Tin-Lead | Tin | Tin-Lead |
| Mated Stacking Heights | 10.92mm, 17.78mm, 18.75mm | 10.92mm, 17.78mm, 18.75mm | 10.92mm, 17.78mm, 18.75mm | 10.92mm, 17.78mm, 18.75mm | 10.92mm, 17.78mm, 18.75mm |
| Ingress Protection | - | - | - | - | - |
| Features | Board Guide, Ground Bus (Plane) | Board Guide, Ground Bus (Plane) | Board Guide, Ground Bus (Plane) | Board Guide, Ground Bus (Plane) | Board Guide, Ground Bus (Plane) |
| Current Rating (Amps) | - | - | - | - | - |
| Voltage Rating | 30VAC | 30VAC | 30VAC | 30VAC | 30VAC |
