536275-7
  • Share:

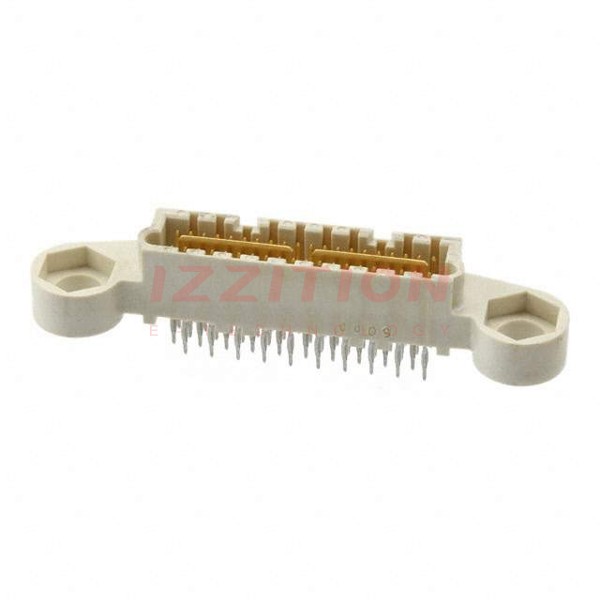

TE Connectivity AMP Connectors 536275-7

Manufacturer No:
536275-7
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
536275-7 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 40POS 1.27MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Plug
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:40
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Press-Fit, Solder
Fastening Type:Push-Pull
Contact Length - Mating:-
Contact Length - Post:0.145" (3.68mm)
Overall Contact Length:-
Insulation Height:0.340" (8.64mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin-Lead
Contact Material:Phosphor Bronze
Insulation Material:Thermoplastic
Features:Ground Bus (Plane), Mounting Flange
Operating Temperature:-65°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Natural
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:30VAC
0 Remaining View Similar

In Stock

-
20

Please send RFQ , we will respond immediately.
