535677-5
  • Share:

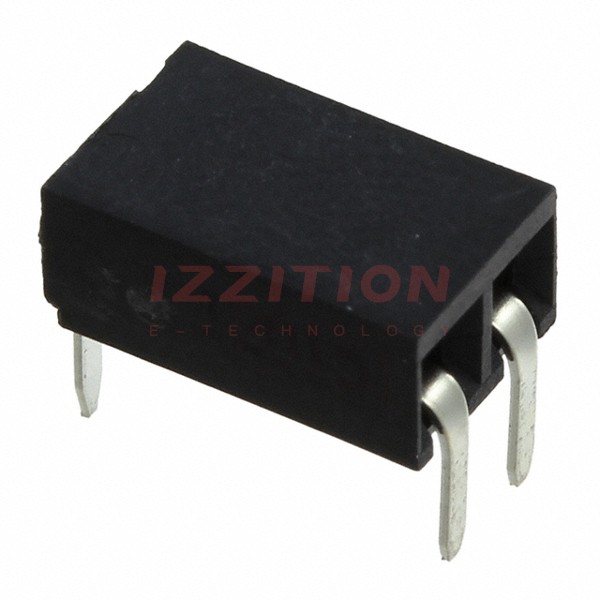

TE Connectivity AMP Connectors 535677-5

Manufacturer No:
535677-5
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
535677-5 Datasheet
ECAD Model:
-
Description:
CONN RCPT 2P 0.1 TIN-LEAD PCB RA
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board
Number of Positions:2
Number of Positions Loaded:All
Pitch - Mating:0.100" (2.54mm)
Number of Rows:1
Row Spacing - Mating:-
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Tin-Lead
Contact Finish Thickness - Mating:100.0µin (2.54µm)
Insulation Color:Black
Insulation Height:0.137" (3.47mm)
Contact Length - Post:0.115" (2.92mm)
Operating Temperature:-55°C ~ 125°C
Material Flammability Rating:-
Contact Finish - Post:Tin-Lead
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

-
67

Please send RFQ , we will respond immediately.

Similar Products

Part Number 535677-5 535676-5   535677-3
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Obsolete Obsolete Active
Connector Type Receptacle Receptacle Receptacle
Contact Type Female Socket Female Socket Female Socket
Style Board to Board Board to Board Board to Board
Number of Positions 2 6 13
Number of Positions Loaded All All All
Pitch - Mating 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Number of Rows 1 1 1
Row Spacing - Mating - - -
Mounting Type Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle
Termination Solder Solder Solder
Fastening Type Push-Pull Push-Pull Push-Pull
Contact Finish - Mating Tin-Lead Gold Tin-Lead
Contact Finish Thickness - Mating 100.0µin (2.54µm) 30.0µin (0.76µm) 100.0µin (2.54µm)
Insulation Color Black Black Black
Insulation Height 0.137" (3.47mm) 0.137" (3.47mm) 0.137" (3.47mm)
Contact Length - Post 0.115" (2.92mm) 0.115" (2.92mm) 0.115" (2.92mm)
Operating Temperature -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C
Material Flammability Rating - - -
Contact Finish - Post Tin-Lead Tin-Lead Tin-Lead
Mated Stacking Heights - - -
Ingress Protection - - -
Features - - -
Current Rating (Amps) - - -
Voltage Rating - - -
