535604-2
  • Share:

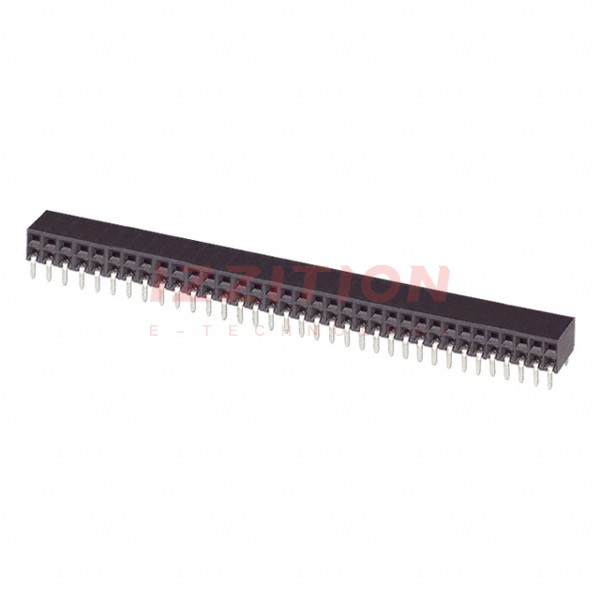

TE Connectivity AMP Connectors 535604-2

Manufacturer No:
535604-2
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
535604-2 Datasheet
ECAD Model:
-
Description:
CONN RCPT 70POS 0.1 GOLD PCB R/A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:70
Number of Positions Loaded:66
Pitch - Mating:0.100" (2.54mm)
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Insulation Color:-
Insulation Height:0.238" (6.05mm)
Contact Length - Post:0.115" (2.92mm)
Operating Temperature:-
Material Flammability Rating:-
Contact Finish - Post:Tin-Lead
Mated Stacking Heights:-
Ingress Protection:-
Features:Guide Pin Ears
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

-
198

Please send RFQ , we will respond immediately.
