Please send RFQ , we will respond immediately.

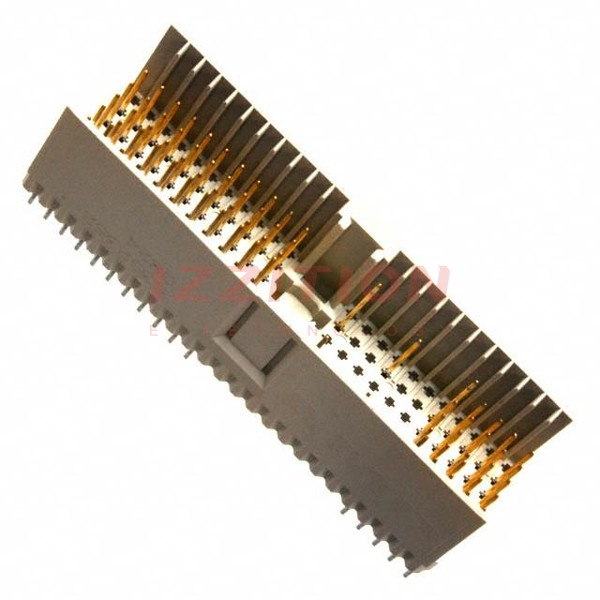

| Part Number | 5352352-1 | 5352359-1 | 5352152-1 | 5352332-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete | Active | Active |
| Connector Type | Header, Male Pins | Receptacle, Female Sockets | Receptacle, Female Sockets | Header, Male Pins |
| Connector Style | A 22 | A 22 | B 22 | A 22 |
| Number of Positions | 132 (110 + 22 Ground) | 110 | 120 (110 + 10 Ground) | 154 (110 + 44 Ground) |
| Number of Positions Loaded | 100 | 90 | All | All |
| Pitch | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Rows | 5 + 1 | 5 | 5 + 1 | 5 + 2 |
| Mounting Type | Through Hole | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Connector Usage | CompactPCI P4 | CompactPCI J4 | CompactPCI J2/J5 | CompactPCI Hot Swap |
| Contact Finish | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
