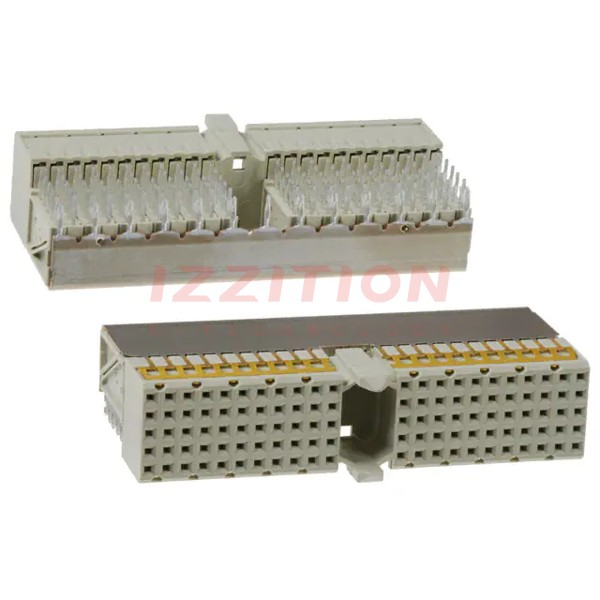

| Part Number | 5352068-1 | 5352068-9 | 5352068-4 | 5352069-1 | 5352268-1 | 352068-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Connector Style | A 22 | A 22 | A 22 | B 25 | B 22 | A 22 |
| Number of Positions | 110 | 110 | 110 | 125 | 120 (110 + 10 Ground) | 110 |
| Number of Positions Loaded | All | All | All | All | All | All |
| Pitch | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Rows | 5 | 5 | 5 | 5 | 5 + 1 | 5 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole | Through Hole, Right Angle |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Connector Usage | CompactPCI J1/J4 | CompactPCI J1/J4 | CompactPCI J1/J4 | - | Backplane | CompactPCI J1/J4 |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 50.0µin (1.27µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
